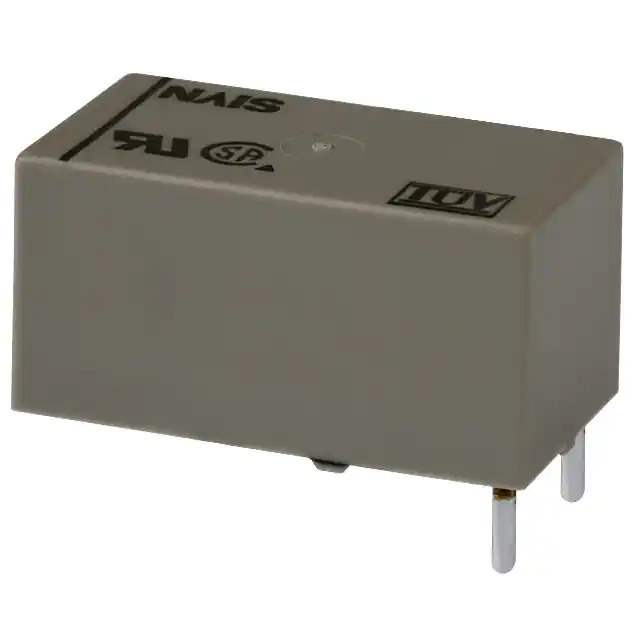

DSP1A-DC5V Real Image
Same model may have multiple batches, images only for reference.

DSP1A-DC5V

Part No DSP1A-DC5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 8A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series DSP
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 8 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 60 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 4 VDC
Must Release Voltage 0.5 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 83.3 Ohms
Base Product Number DSP1
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 587198-DSP1A-DC5V
Ultra Librarian 3D Model Ultra Librarian DSP1A-DC5V CAD Model

Description

The 587198-DSP1A-DC5V is a power relay from the DSP series by Panasonic.

  • Contact Form: SPST-NO (1 Form A)
  • Coil Voltage: 5VDC
  • Contact Rating: 8 A
  • Switching Voltage: Up to 250VAC and 30VDC
  • Coil Resistance: 83.3 Ohms
  • Coil Current: 60 mA
  • Operate Time: 10 ms
  • Release Time: 5 ms
  • Applications: Industrial Control Systems, Automotive Electronics, and Home Appliances
  • Sealed: Fully Sealed
  • Temperature Range: -40°C to 60°C
  • Packaging: Bulk
  • Standard Package: 50 pcs
  • Status: Active
  • Compliance: ECCN
