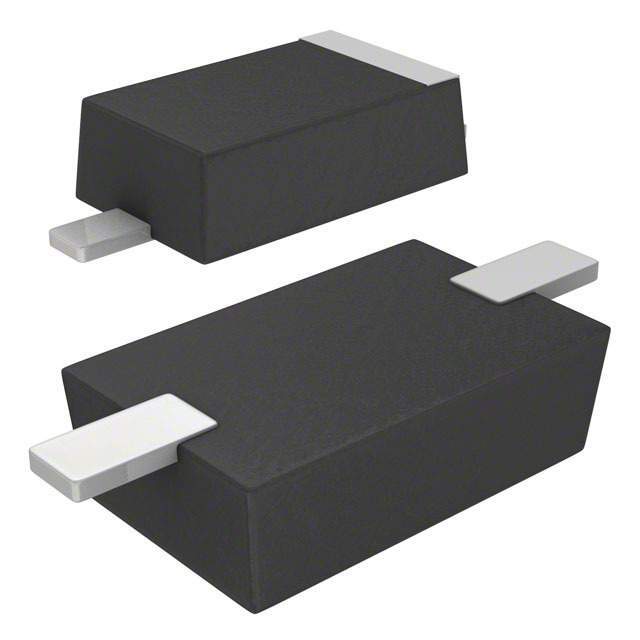

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 490mV @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 23ns
Current - Reverse Leakage @ Vr 200μA @ 30V
Capacitance @ Vr, F 70pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package Mini2-F3-B
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 013817-DB2W31900L
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian DB2W31900L CAD Model

Description

DB2W31900L: Versatile Electronic Component

The DB2W31900L is designed to meet the demands of modern electronic applications with a focus on flexibility and reliability. It integrates seamlessly into various systems, offering stable performance across different operating conditions.

Features and Benefits

  • Highly efficient energy usage.
  • Compact and lightweight for easy installation.
  • Broad compatibility with different devices.
  • Exceptional operational stability.
  • User-friendly setup and maintenance.

Applications

  • Embedded system design.
  • Smart home devices.
  • Portable electronic gadgets.
  • Security and surveillance systems.
  • Smart grid technology.

Accompanied by detailed support resources, the DB2W31900L is engineered to streamline electronic projects and enhance end-product quality.
