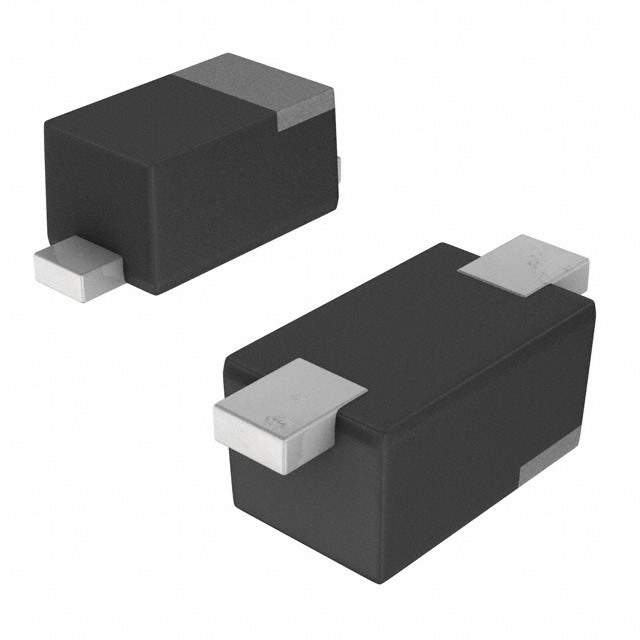

DB2U30800L Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 420mV @ 100mA
Reverse Recovery Time (trr) 1.3ns
Current - Reverse Leakage @ Vr 120μA @ 30V
Capacitance @ Vr, F 2.9pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package USSMINI2-F2-B
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 013814-DB2U30800L
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 10k pcs
Ultra Librarian 3D Model Ultra Librarian DB2U30800L CAD Model

Description

DB2U30800L Diode

The DB2U30800L diode provides stability and efficiency in power conversion processes. It is versatile enough to be utilized in a wide range of electronic applications.

  • Applications:
    • Industrial power supply systems
    • Distributed power generation
    • Telecommunications infrastructure
    • Portable electronic devices
  • Features:
    • High power efficiency
    • Compact and lightweight design
    • Wide temperature operating range
    • Fast recovery time
  • Benefits:
    • Improves energy conversion efficiency
    • Facilitates innovative circuit designs
    • Reduces heat generation, promoting device longevity
  • Additional Details: This product is specifically engineered to deliver reliable results even in challenging environments, offering optimal performance across diverse applications.
