Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 500mV @ 500mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 2.4ns
Current - Reverse Leakage @ Vr 30μA @ 10V
Capacitance @ Vr, F 7pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package SMini2-F5-B
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1032664-DB2J20900L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DB2J20900L CAD Model

Description

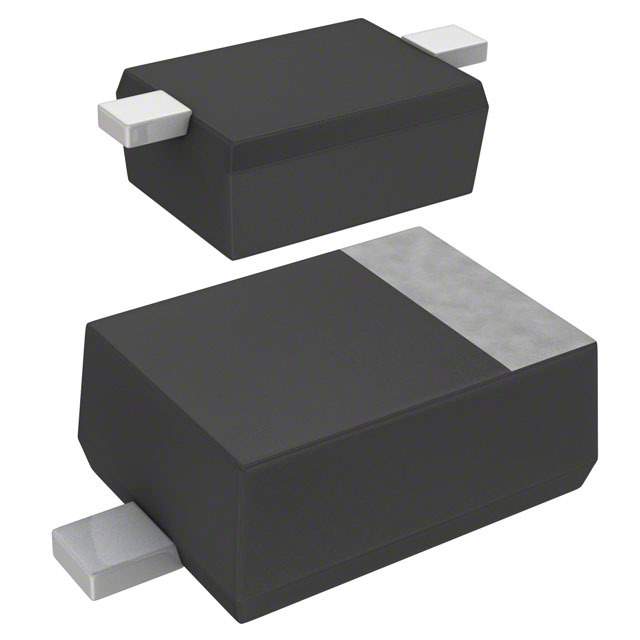

The Panasonic Electronic Components Schottky diode is a fast recovery diode that is ideal for use in electronic circuits.

  • Maximum DC Reverse Voltage: 20V
  • Average Rectified Current: 500mA
  • Forward Voltage: 500mV @ 500mA
  • Reverse Recovery Time: 2.4ns
  • Capacitance @ 10V and 1MHz: 7pF
  • Operating Temperature: 125°C (Max)
  • Package: SMini2-F5-B
  • Category: Discrete Semiconductor Products
  • Status: active
  • Supply and Demand Status: balanced
