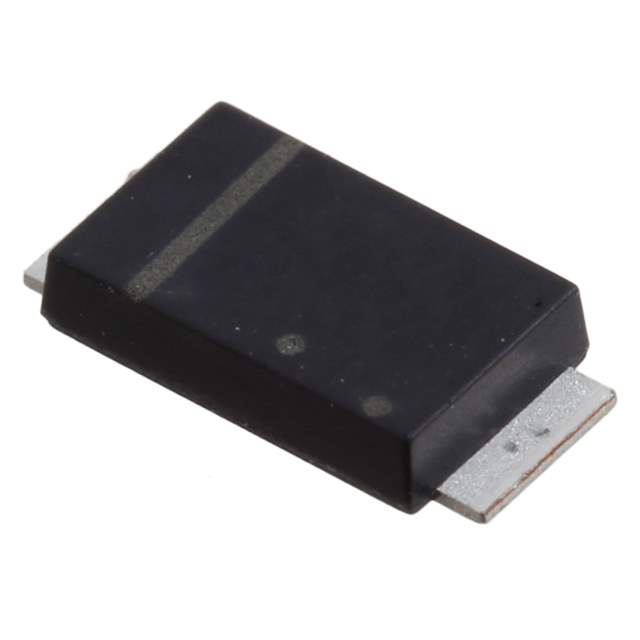

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Panasonic
Package Tape & Reel
Product Status Discontinued
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 450 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 30 ns
Current - Reverse Leakage @ Vr 300 µA @ 40 V
Capacitance @ Vr, F 95pF @ 10V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-128
Supplier Device Package TMiniP2-F2-B
Operating Temperature - Junction 125°C (Max)
Base Product Number DB24416
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 849975-DB2441600L
Ultra Librarian 3D Model Ultra Librarian DB2441600L CAD Model

Description

The DB2441600L is a fast recovery Schottky diode from Panasonic. Bold the product name (e.g., BAV99S,135 → DB2441600L) and manufacturer (e.g., Nexperia USA Inc. → Panasonic).

  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 3A
  • Forward Voltage Drop: 450mV @ 3A
  • Reverse Recovery Time: 30ns
  • Package: SOD-128
  • Mounting Type: Surface Mount
  • Status: Discontinued
