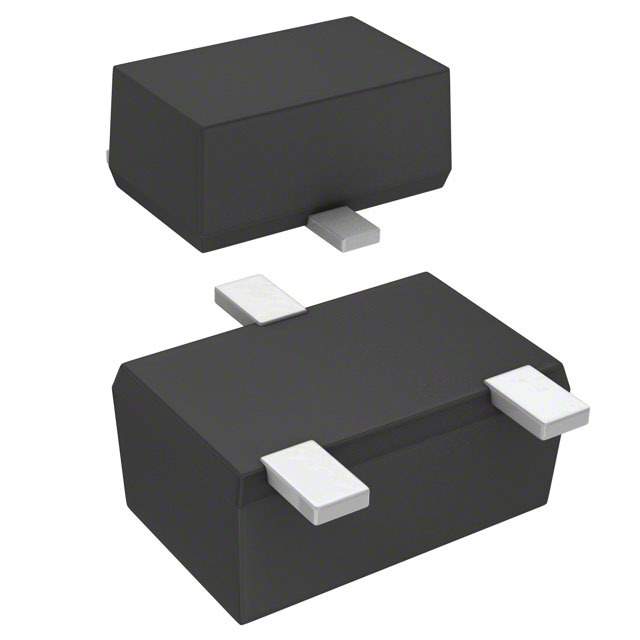

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Panasonic Electronic Components
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 80 V
Current - Average Rectified (Io) 100mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 3 ns
Current - Reverse Leakage @ Vr 100 nA @ 80 V
Capacitance @ Vr, F 1.2pF @ 0V, 1MHz
Mounting SMD (SMT)
Package / Case SC-85
Supplier Device Package SMini3-F2-B
Operating Temperature - Junction 150°C (Max)
Base Product Number DA3J101
Other Names DA3J101A0LTR,DA3J101A0LDKR,DA3J101A0LCT,DA3J101A0L
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1282197-DA3J101A0L
Ultra Librarian 3D Model Ultra Librarian DA3J101A0L CAD Model

Description

The 1282197-DA3J101A0L is a standard diode that is designed to rectify current.

  • Maximum DC Reverse Voltage (Vr): 80 V
  • Average Rectified Current (Io): 100mA (DC)
  • Maximum Forward Voltage (Vf): 1.2 V @ 100 mA
  • Reverse Recovery Time (trr): 3 ns
  • Reverse Leakage Current (Ir): 100 nA @ 80 V
  • Capacitance: 1.2pF @ 0V, 1MHz
  • Operating Temperature Range: Up to 150°C (Max)
  • Package: SC-85
  • Supplier Device Package: SMini3-F2-B
