Same model may have multiple batches, images only for reference.

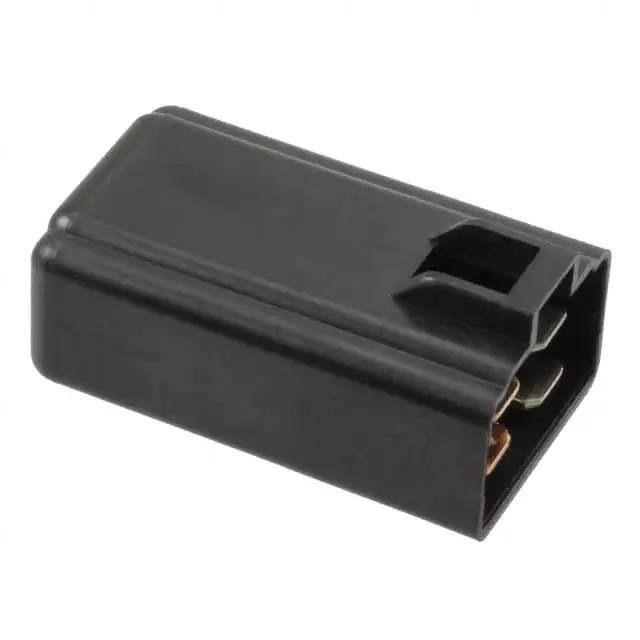

CA1A-12V-C-5 Real Image
Same model may have multiple batches, images only for reference.

CA1A-12V-C-5

Part No CA1A-12V-C-5
Manufacturer Panasonic
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPST 30A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Panasonic
Series CA
Package Bulk
Product Status Active
Coil Type Non Latching
Coil Current 150 mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30 A
Switching Voltage 16VDC - Max
Must Operate Voltage 8 VDC
Must Release Voltage 0.6 VDC
Operate Time 10 ms
Release Time 10 ms
Mounting Type Socketable
Termination Style Plug In
Temperature Range - Operating -30°C ~ 80°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 1.8W
Coil Resistance 80 Ohms
Base Product Number CA1A-12
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 865719-CA1A-12V-C-5
Ultra Librarian 3D Model Ultra Librarian CA1A-12V-C-5 CAD Model

Description

The Panasonic CA series is a reliable and high-performance automotive relay.

  • Type: SPST-NO (1 Form A)
  • Termination: Plug-in
  • Contact Material: Silver alloy, cadmium-free
  • Coil Voltage: 12VDC
  • Coil Resistance: 80 Ohms
  • Coil Current: 150 mA
  • Contact Rating: 30 A
  • Switching Voltage: 16VDC maximum
  • Operate and Release Time: 10 ms
  • Temperature Range: -30°C to 80°C
  • Suitable for: Automotive applications
  • Status: Active
