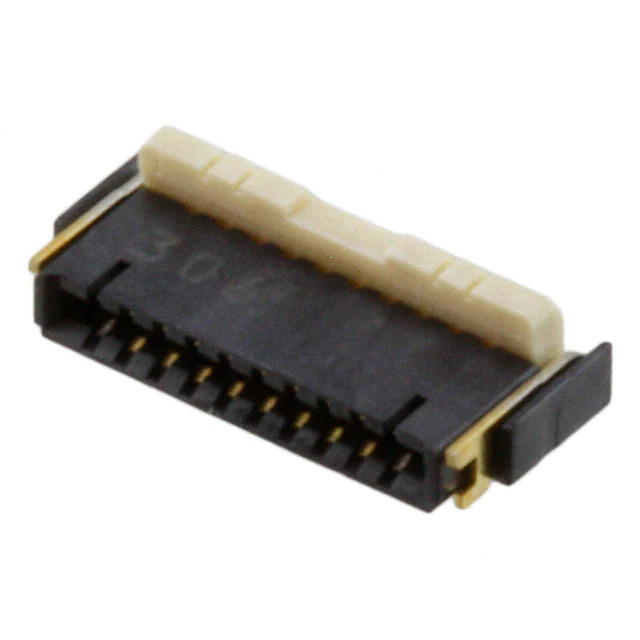

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Panasonic Electric Works
Series Y5BW
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 8
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock, Backlock
Cable End Type Notched
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Features -
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A per Contact
Contact Finish Thickness Flash
Housing Color -
Actuator Color -
Mating Cycles 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1377931-AYF530865
Ultra Librarian 3D Model Ultra Librarian AYF530865 CAD Model

Description

The 1377931-AYF530865 is a FFC, FPC (Flat Flexible) Connector Assembly manufactured by Panasonic Electric Works.

  • Series: Y5BW
  • Application: FFC, FPC Connector
  • Temperature Range: -55°C to 85°C
  • Current Rating: 0.5A per contact
  • Voltage Rating: 50V
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Positions: 8
  • Pitch: 0.020" (0.50mm)
  • Mounting Type: Surface Mount, Right Angle
  • Contact Material: Copper Alloy
  • Housing Material: Liquid Crystal Polymer (LCP)
