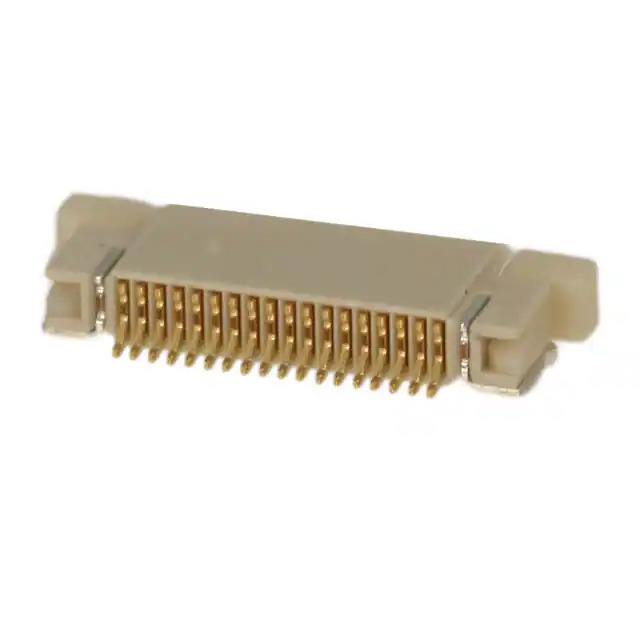

1-1734839-8 TE Connectivity
Same model may have multiple batches, images only for reference.

1-1734839-8

Part No 1-1734839-8
Manufacturer TE Connectivity
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC TOP 18POS 0.5MM R/A / 18 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel
Product Status Active
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 18
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.081" (2.05mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Thermoplastic
Actuator Material Thermoplastic
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 250V
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness Flash
Housing Color Natural
Actuator Color Ivory
Mating Cycles -
Base Product Number 1734839
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362687-1-1734839-8
Ultra Librarian 3D Model Ultra Librarian 1-1734839-8 CAD Model

Description

The TE Connectivity AMP Connectors FFC, FPC (Flat Flexible) Connector Assemblies are designed for surface mount, right angle mounting.

  • Pitch: 0.020" (0.50mm)
  • Number of Positions: 18
  • Features: Solder Retention, Zero Insertion Force (ZIF)
  • Contact Finish: Gold with flash thickness
  • Contact Material: Phosphor Bronze
  • Housing Material: Thermoplastic
  • Voltage Rating: 250V
  • Current Rating: 0.5A
  • Flammability Rating: UL94 V-0
  • Housing Color: Natural
  • Actuator Color: Ivory
