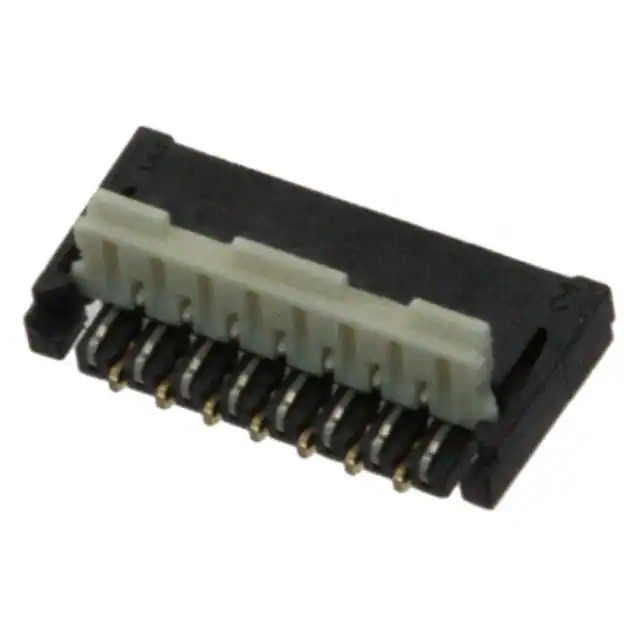

AYF331735 Panasonic
Same model may have multiple batches, images only for reference.

AYF331735

Part No AYF331735
Manufacturer Panasonic
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 17POS 0.3MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Panasonic Electric Works
Series Y3B
Package Bulk
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 17
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.035" (0.88mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Features -
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A per Contact
Contact Finish Thickness Flash
Housing Color -
Actuator Color -
Mating Cycles 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1377927-AYF331735
Ultra Librarian 3D Model Ultra Librarian AYF331735 CAD Model

Description

The Y3B series FFC/FPC connector assembly from Panasonic Electric Works is a surface mount, right-angle connector.

  • Pitch: 0.012" (0.30mm)
  • Number of Positions: 17
  • Current Rating: 0.2A per contact
  • Voltage Rating: 50V
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Height Above Board: 0.035" (0.88mm)
  • Mating Cycle: 20
  • Termination: Solder
  • Cable End Type: Tapered
  • Locking Feature: Flip Lock, Backlock
  • Product Status: Obsolete
  • ECCN: EAR99
