Same model may have multiple batches, images only for reference.

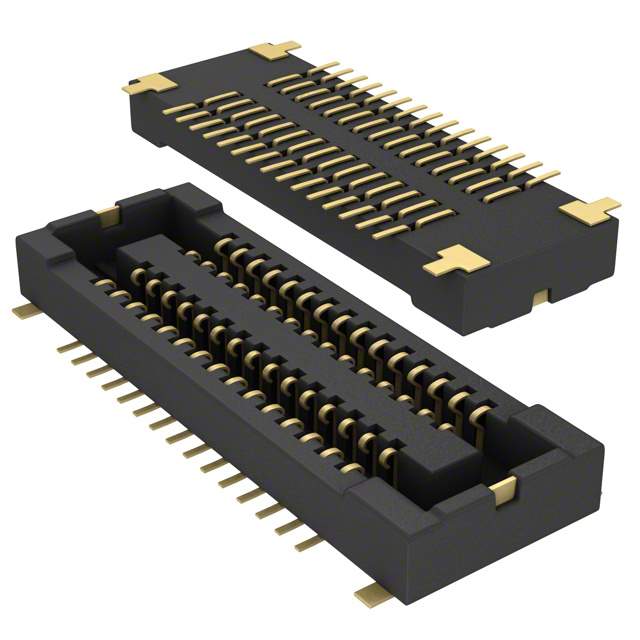

AXT532124 Real Image
Same model may have multiple batches, images only for reference.

AXT532124

Part No AXT532124
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET .4MM 32POS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 32
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.038" (0.97mm)
Win Source Part Number 1021119-AXT532124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian AXT532124 CAD Model

Description

The AXT532124 from Panasonic Electric Works is a socket connector with outer shroud contacts.

  • Positions: 32
  • Pitch: 0.016 inches (0.40mm)
  • Mounting: SMD (SMT) technology
