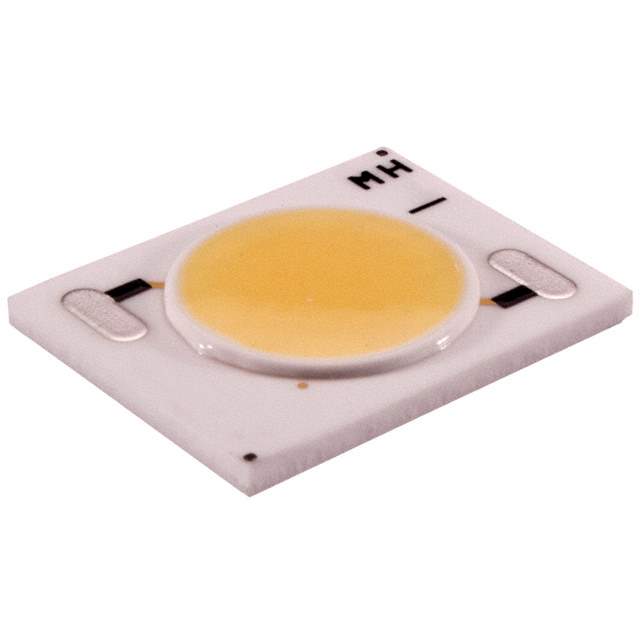

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Sharp Microelectronics
Series Mini Zenigata
Packaging Tray
Part Status Obsolete(EOL)
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5000K
Configuration Rectangle
Flux @ Current/Temperature - Test 230 lm (Typ)
Current - Test 360mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 10.2V
Lumens/Watt @ Current - Test 63 lm/W
Current - Max 400mA
CRI (Color Rendering Index) 83
Dimension 15.00mm L x 12.00mm W
Height 1.60mm
Light Emitting Surface (LES) 7.10mm L x 7.10mm W
Lens Type Flat
Win Source Part Number 775476-GW5BTC50K00
Popularity Medium
Supply and Demand Status Balance
Family Name GW5BTC50K00
Introduction Date October 01, 2009
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian GW5BTC50K00 CAD Model

Description

The GW5BTC50K00 is a white LED designed for use in electronic circuits.

  • Category: Optoelectronics
  • LED Type: Chip on Board (COB)
  • Configuration: Rectangle
  • Current Max: 400mA
  • Voltage Forward (Vf): 10.2V
  • CCT: 5000K
  • Lumens/Watt @ Current Test: 63 lm/W
  • CRI: 83
  • Flux @ Current/Temperature Test: 230 lm (Typ)
  • Temperature Test: 25°C
  • Light Emitting Surface (LES): 7.10mm L x 7.10mm W
  • Dimension: 15.00mm L x 12.00mm W
  • Manufacturer: Sharp Microelectronics
  • Obsolete: Yes
