AXT454124
Same model may have multiple batches, images only for reference.

AXT454124

Part No AXT454124
Manufacturer Panasonic
Catalog Rectangular Connectors

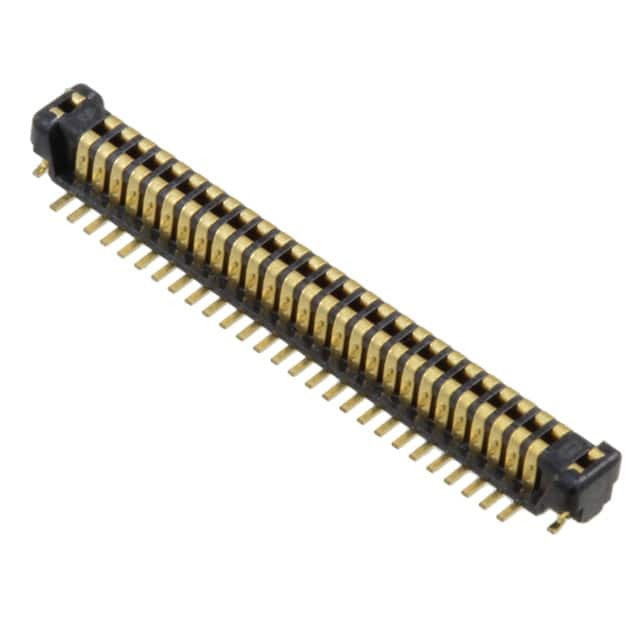

Description CONN HDR 54POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series P4S
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Connector Type Header, Center Strip Contacts
Number of Positions 54
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm, 2.5mm
Height Above Board 0.049" (1.25mm)
Base Product Number AXT454
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 912366-AXT454124
Ultra Librarian 3D Model Ultra Librarian AXT454124 CAD Model

Description

The Panasonic P4S series is a high-quality rectangular connector array designed for board-to-board connections in electronic devices.

  • Positions: 54 positions
  • Pitch: 0.016" (0.40mm)
  • Connector Type: Header features center strip contacts
  • Feature: Solder retention
  • Mounting: Surface mount mounting
  • Height Above the Board: 0.049" (1.25mm)
  • Packaging: Tape & reel packaging
  • Standard Package Size: 3,000 pcs
  • Product Line: AXT454 product line from Panasonic
  • Status: Now obsolete
