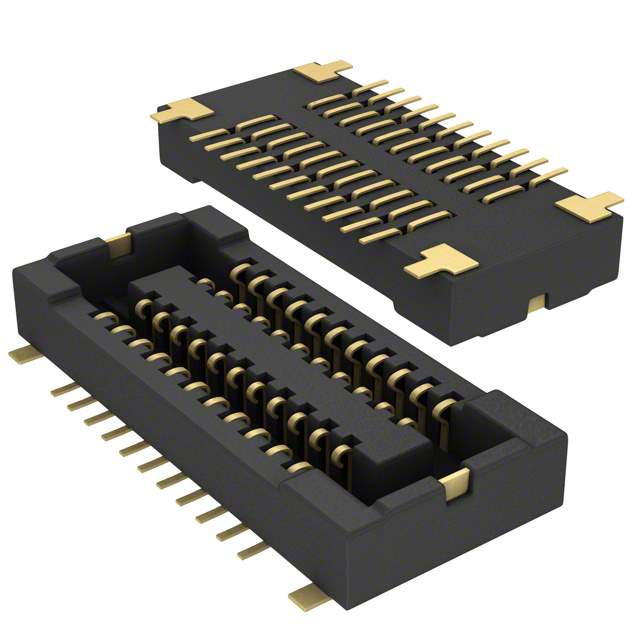

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 22
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.038" (0.97mm)
Win Source Part Number 1021117-AXT522124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AXT522124 CAD Model

Description

The Panasonic Electric Works 1021117-AXT522124 is a socket, outer shroud contacts connector with a reel - TR packaging manufactured by Panasonic Electric Works.

  • Positions: 22
  • Pitch: 0.016" (0.40mm)
  • Solder Retention: Yes
  • Contact Finish: Gold
  • Mated Stacking Height: 1mm
  • Height Above Board: 0.038" (0.97mm)
  • Mounting: SMD (SMT)
  • Supply and Demand Status: Balanced
  • Package Quantity: 3k pcs
