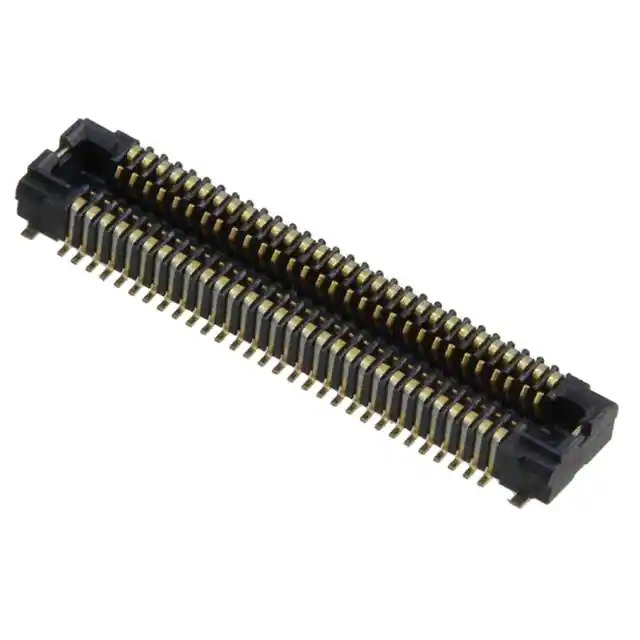

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series P4S
Package Tape & Reel
Product Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 60
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness -
Mated Stacking Heights 2.5mm, 3mm
Height Above Board 0.096" (2.45mm)
Base Product Number AXT360
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1377925-AXT360224
Ultra Librarian 3D Model Ultra Librarian AXT360224 CAD Model

Description

The Panasonic Electric Works AXT360224 is a rectangular connector array from the P4S series.

  • Connector Type: Socket
  • Contacts: Outer Shroud
  • Positions: 60
  • Rows: 2
  • Pitch: 0.016" (0.40mm)
  • Height Above Board: 0.096" (2.45mm)
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Contact Plating: Gold
  • Features: Solder Retention
  • Application: Mezzanine (Board to Board)
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
