Same model may have multiple batches, images only for reference.

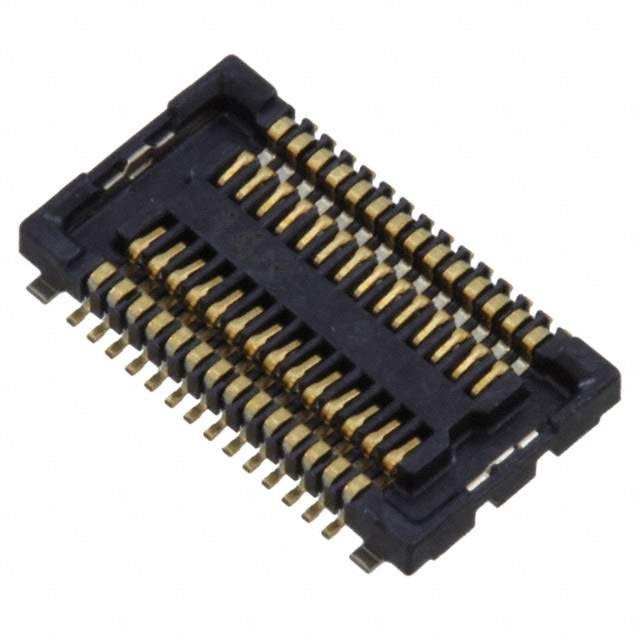

AXK7L28223G Real Image
Same model may have multiple batches, images only for reference.

AXK7L28223G

Part No AXK7L28223G
Manufacturer Panasonic
Catalog Rectangular - Board to Board Connectors
Description CONN SOCKET FPC .4MM 28POS SMD
Datasheet
AXK7L28223G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Obsolete(EOL)
Connector Type Socket, Center Strip Contacts
Number of Positions 28
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.9mm
Height Above Board 0.034" (0.86mm)
Win Source Part Number 048652-AXK7L28223G
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AXK7L28223G CAD Model

Description

AXK7L28223G Electronic Connector

The AXK7L28223G is a versatile electronic connector that offers superior connectivity and durability across several applications. Its top-tier performance makes it a go-to solution for many electronic engineers and project designers.

  • Applications:
    • Smart Home Devices
    • Industrial Machinery
    • Data Centers
    • Healthcare Monitoring Systems
    • Military Technology
  • Features and Benefits:
    • Low insertion force for user-friendly operation
    • High contact reliability with gold-plated contacts
    • Interference-resistant design
    • Compatible with various voltages for flexible use
    • Environmentally friendly components

    This connector provides essential features and durability that ensure its effectiveness across a diverse range of projects.
