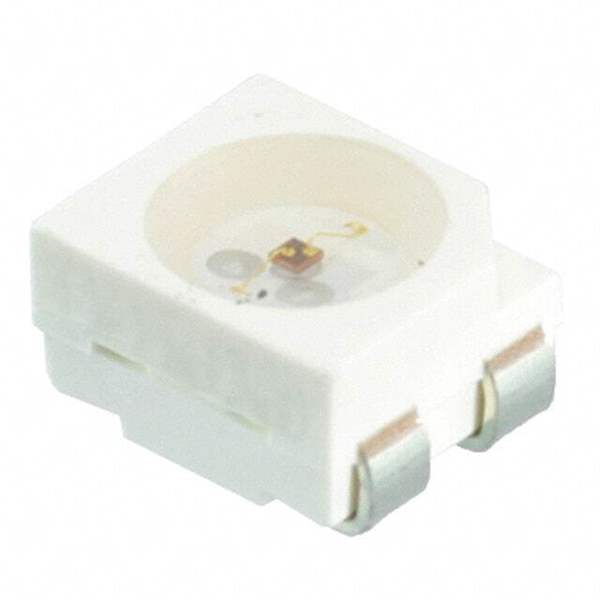

LNJ8L4C18RAA
Same model may have multiple batches, images only for reference.

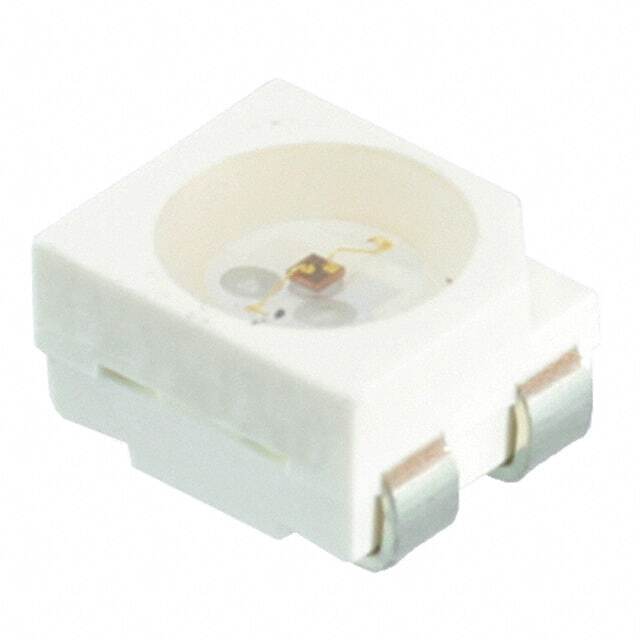

LNJ8L4C18RAA

Part No LNJ8L4C18RAA
Manufacturer Panasonic
Catalog LED Indication - Discrete
Description LED RED CLEAR 4PLCC SMD / Red 617nm LED Indication - Discrete 2.3V 4-PLCC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Panasonic
Package Tape & Reel
Product Status Obsolete
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 1130mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 2.3V
Current - Test 50mA
Mounting Type Surface Mount
Wavelength - Dominant 617nm
Wavelength - Peak 623nm
Package / Case 4-PLCC
Supplier Device Package 4-PLCC
Size / Dimension 3.20mm L x 2.80mm W
Height (Max) 1.95mm
Base Product Number LNJ8L4C18
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 923554-LNJ8L4C18RAA
Ultra Librarian 3D Model Ultra Librarian LNJ8L4C18RAA CAD Model

Description

The Panasonic 923554-LNJ8L4C18RAA is an obsolete LED indication discrete component.

  • Manufacturer: Panasonic
  • Product Name: 923554-LNJ8L4C18RAA
  • Color: Red
  • Package: 4-PLCC
  • Size: 3.20mm L x 2.80mm W
  • Height: 1.95mm
  • Lens Color: Colorless and transparent
  • Millicandela Rating: 1130mcd
  • Forward Voltage (Vf): 2.3V (typical) @ 50mA
  • Test Current: 50mA
  • Dominant Wavelength: 617nm
  • Peak Wavelength: 623nm
  • Status: Obsolete
  • Moisture Sensitivity Level: 3 (168 hours)
