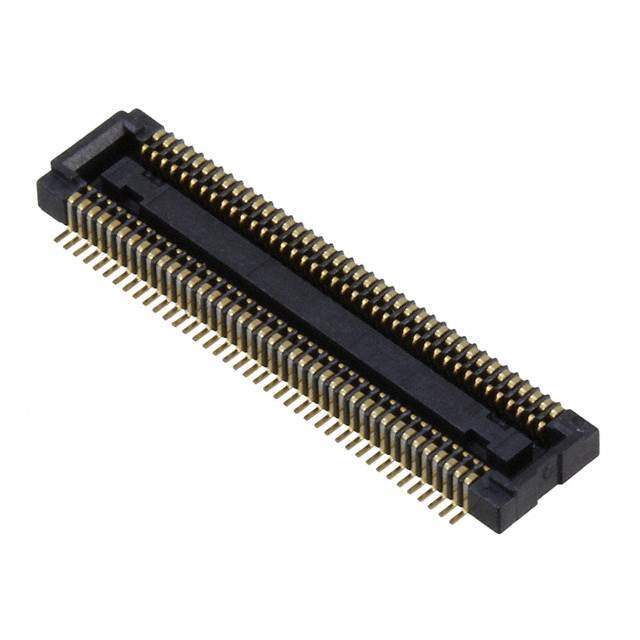

AXK780247A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 80
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Contact Finish Gold
Mated Stacking Heights 2mm
Height Above Board 0.076" (1.92mm)
Win Source Part Number 1021026-AXK780247A
Popularity Medium
Supply and Demand Status Balance
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian AXK780247A CAD Model

Description

The Panasonic Electric Works AXK780247A is an 80-position socket connector with center strip contacts.

  • Product Name: AXK780247A
  • Manufacturer: Panasonic Electric Works
  • Connector Type: Socket Connector
  • Number of Positions: 80
  • Contact Type: Center Strip
  • Pitch: 0.016" (0.40mm)
  • Mated Stacking Height: 2mm
  • Contact Finish: Gold
  • Mounting: Surface Mount
  • Height Above Board: 0.076" (1.92mm)
  • Packaging: Bulk
  • Category: Connectors and Interconnects
  • Popularity: Medium
  • Supply and Demand Status: Balance
  • Quantity per Package: 500
