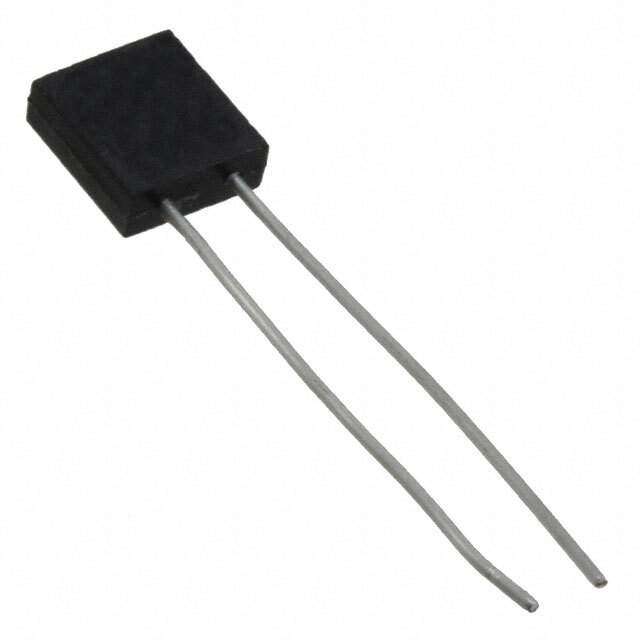

SM10-100RX Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Riedon
Series 100/SM/PC Precision
Package Bulk
Resistance 100 Ohms
Tolerance ±0.01%
Power (Watts) 0.3W
Composition Wirewound
Features Flame Proof, Moisture Resistant, Non-Inductive, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 145°C
Package / Case Radial
Dimension 0.299" L x 0.102" W (7.60mm x 2.60mm)
Height - Seated (Max) 0.344" (8.74mm)
Number of Terminations 2
Other Names 696-1568,SM10-100RX8
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1236273-SM10-100RX
Ultra Librarian 3D Model Ultra Librarian SM10-100RX CAD Model

Description

The SM10-100RX is a through-hole resistor manufactured by Riedon.

  • Resistor Type: Wirewound
  • Resistance: 100 Ohms
  • Tolerance: ±0.01%
  • Temperature Coefficient: ±20ppm/°C
  • Features: Flame-proof, moisture-resistant, and non-inductive with a safety feature
