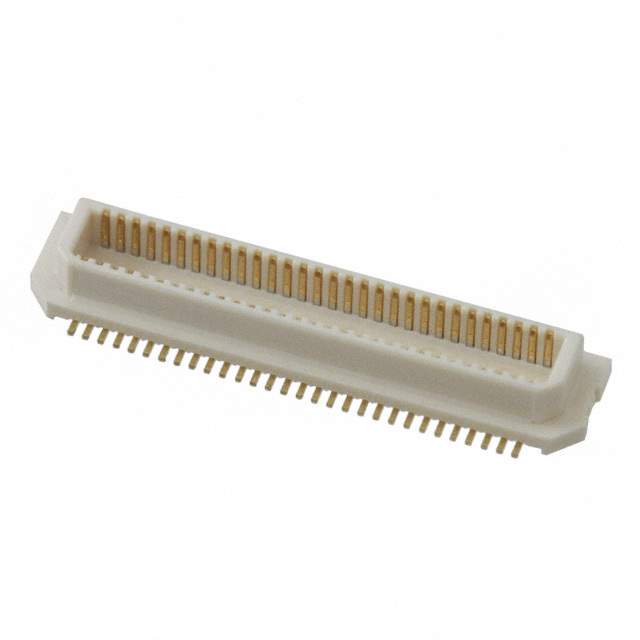

AXK6A2347YG Real Image
Same model may have multiple batches, images only for reference.

AXK6A2347YG

Part No AXK6A2347YG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HEADER BRD/BRD .5MM 120POS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 120
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Contact Finish Gold
Mated Stacking Heights 3mm
Height Above Board 0.094" (2.40mm)
Win Source Part Number 1020985-AXK6A2347YG
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian AXK6A2347YG CAD Model

Description

The Panasonic Electric Works AXK6A2347YG is a connector used in various applications such as computers, telecommunications, and industrial equipment.

  • Positions: 120
  • Pitch: 0.020" (0.50mm)
  • Connector Type: Header, outer shroud contacts
  • Contact Finish: Gold
  • Height Above Board: 0.094" (2.40mm)
  • Mounting: SMD (SMT)
  • Supply and Demand Status: Balance
  • Package Quantity: 1,500
