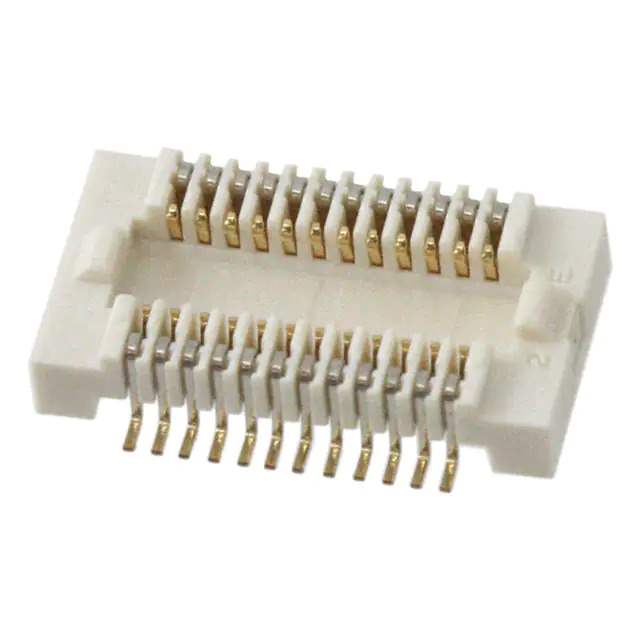

AXK5F80547YG Real Image
Same model may have multiple batches, images only for reference.

AXK5F80547YG

Part No AXK5F80547YG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 80POS SMD GOLD / 80 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series P5KF
Package Tape & Reel
Product Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 80
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Contact Finish Gold
Mated Stacking Heights 2mm, 2.5mm
Height Above Board 0.073" (1.85mm)
Base Product Number AXK5F80547
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 912342-AXK5F80547YG
Ultra Librarian 3D Model Ultra Librarian AXK5F80547YG CAD Model

Description

The P5KF series AXK5F80547YG rectangular connector array from Panasonic is a surface mount connector with 80 positions and a pitch of 0.020" (0.50mm).

  • Manufacturer: Panasonic
  • Series: P5KF
  • Type: Rectangular Connector Array
  • Mounting: Surface Mount
  • Positions: 80
  • Pitch: 0.020" (0.50mm)
  • Contact Finish: Gold
  • Connector Type: Socket, Outer Shroud Contacts
  • Rows: 2
  • Application: Mezzanine (Board to Board)
  • Mated Stacking Heights: 2mm and 2.5mm
  • Height Above Board: 0.073" (1.85mm)
  • Operating Temperature Range: -40°C to 85°C
