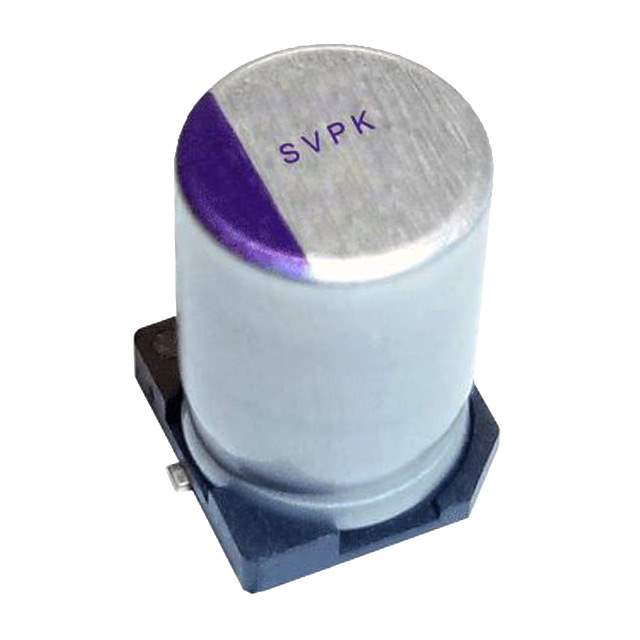

Same model may have multiple batches, images only for reference.

50SVPK120M

Name: 50SVPK120M
Brand: Panasonic
SKU: 1328508
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	50SVPK120M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 120UF 20% 50V SMD / 120 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 20mOhm 1000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Type	Polymer
Capacitance	120 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	20mOhm
Lifetime @ Temp.	1000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Applications	General Purpose
Ripple Current @ Low Frequency	67.5 mA @ 120 Hz
Ripple Current @ High Frequency	1.35 A @ 100 kHz
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.500" (12.70mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting	Surface Mount
Case / Package	Radial, Can - SMD
Base Product Number	50SVPK
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	P122137TR,P122137DKR,P122137CT
Standard Package	400
Win Source Part Number	1328508-50SVPK120M
Ultra Librarian 3D Model	Ultra Librarian 50SVPK120M CAD Model

Description

The 50SVPK120M is a radial, can-smd aluminum-polymer capacitor manufactured by Panasonic Electronic Components.

Capacitance: 120 μF
Voltage Rating: 50V
Tolerance: ±20%
Size/Dimension: 0.394" Dia (10.00mm)
Seated Height: 0.500" (12.70mm)
ESR: 20mOhm
Ripple Current: 67.5 mA @ 120 Hz and 1.35 A @ 100 kHz
ROHS3 Compliant: Yes
Package: reel
Standard Package: 400
Application: general-purpose applications
Temperature Range: -55°C to 125°C
Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
HTSUS Code: 8532.22.0020
