Same model may have multiple batches, images only for reference.

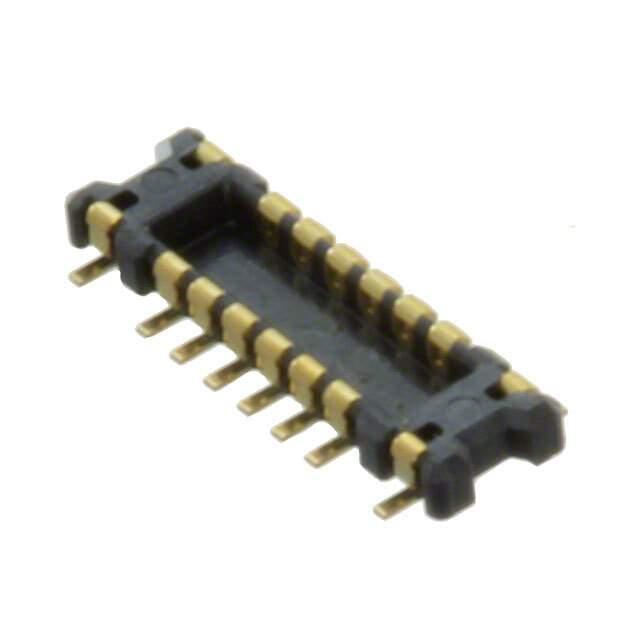

AXG212144A Real Image
Same model may have multiple batches, images only for reference.

AXG212144A

Part No AXG212144A
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HDR 12POS 0.35MM SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Cut Strip
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 12
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.6mm
Height Above Board 0.018" (0.47mm)
Win Source Part Number 1020961-AXG212144A
Popularity Medium
Supply and Demand Status Balance
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian AXG212144A CAD Model

Description

The AXG212144A is a header, outer shroud contacts connector from Panasonic Electric Works.

  • Manufacturer: Panasonic Electric Works
  • Pitch: 0.014" (0.35mm)
  • Packaging: Cut Strip
  • Positions: 12
  • Rows: 2
  • Contact Finish: Gold
  • Mated Stacking Height: 0.6mm
  • Height Above Board: 0.018" (0.47mm)
  • Mounting Style: SMD
  • Quantity per Package: 500
