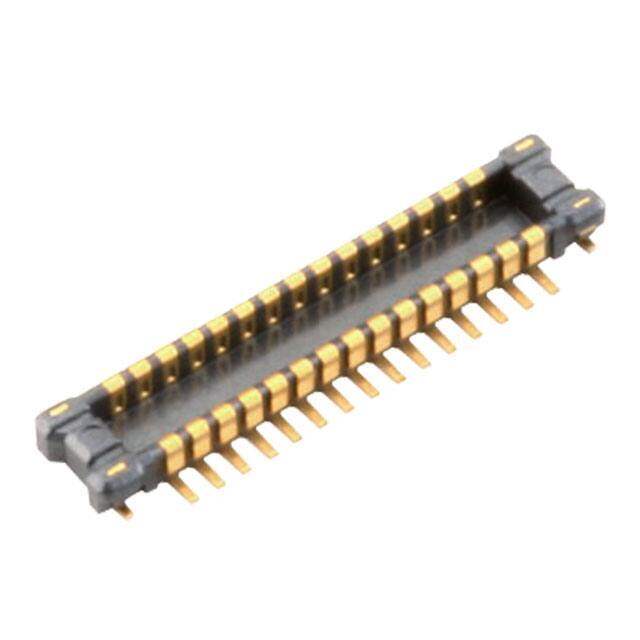

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A35P
Package Tape & Reel
Product Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 30
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Base Product Number AXF6A3
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862743-AXF6A3012
Ultra Librarian 3D Model Ultra Librarian AXF6A3012 CAD Model

Description

The 862743-AXF6A3012 is a rectangular connector array from Panasonic's A35P series. It is designed for board-to-board connections and offers 30 positions with a pitch of 0.014" (0.35mm).

  • Series: A35P
  • Design: Board-to-board connections
  • Positions: 30
  • Pitch: 0.014" (0.35mm)
  • Features: Solder retention
  • Type: Header with outer shroud contacts
  • Rows: Two
  • Contact Finish: Gold
  • Mated Stacking Height: 0.8mm
  • Height Above the Board: 0.026" (0.65mm)
  • Mounting: Surface mountable
  • Package: Tape and reel
  • Standard Quantity: 5,000 pcs
