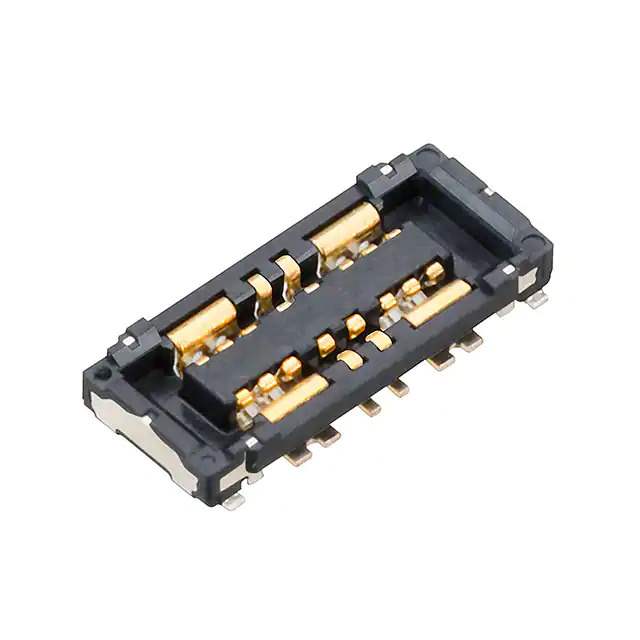

AXF382700

Name: AXF382700
Brand: Panasonic
SKU: 844792
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AXF382700
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN SOCKET 8POS SMD GOLD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Panasonic
Series	B02
Package	Tape & Reel
Product Status	Active
Connector Type	Socket, Center Strip Contacts
Number of Positions	8
Number of Rows	2
Mounting Type	Surface Mount
Features	Solder Retention
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Mated Stacking Heights	0.7mm
Height Above Board	0.027" (0.68mm)
Base Product Number	AXF382
Standard Package	15,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	844792-AXF382700
Ultra Librarian 3D Model	Ultra Librarian AXF382700 CAD Model

Description

The AXF382700 is a rectangular connector array used for board-to-board connections.

Series: B02 manufactured by Panasonic
Number of Positions: 8
Pitch: Not Specified
Features: Solder Retention
Type: Socket with Center Strip Contacts
Rows: 2
Contact Finish Thickness: 4.00µin (0.100µm)
Package Type: Tape & Reel
Standard Package: 15,000 pieces
Mounting Type: Surface Mount
Mated Stacking Height: 0.7mm
Product Status: Active
ECCN: EAR99
Fake Products Threat: 35% in the open market
MSL Level: 1 (Unlimited floor life)
HTSUS Code: 8536.69.4040
