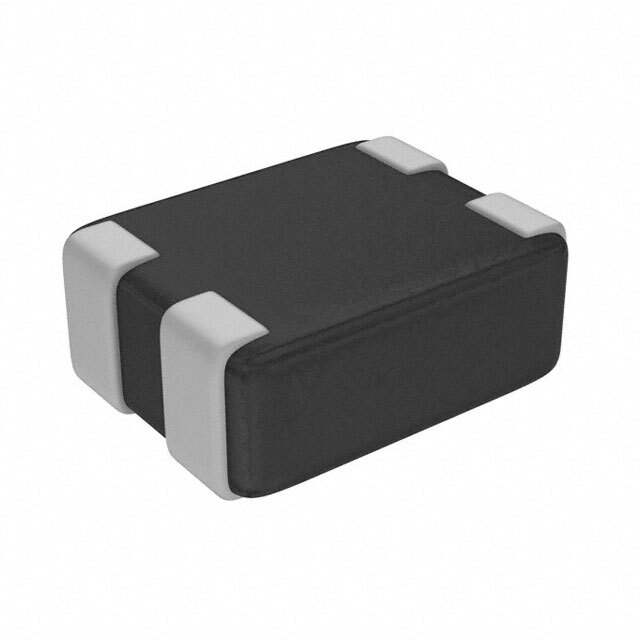

EXC-24CD900U

Part No EXC-24CD900U
Manufacturer Panasonic
Catalog Common Mode Chokes
Description CMC 160MA 2LN 90 OHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 90 Ohm @ 100MHz
Current Rating (Max) 160mA
DC Resistance (DCR) (Max) 2 Ohm
Voltage Rating - DC 5V
Mounting SMD (SMT)
Height (Max) 0.024" (0.60mm)
Dimension 0504 (1210 Metric), 4 Lead
Win Source Part Number 104091-EXC-24CD900U
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EXC-24CD900U CAD Model

Description

Description:

The EXC-24CD900U is a cutting-edge electronic component that ensures premium performance in advanced technological setups. It is acclaimed for its efficiency and innovative design.

Applications:

  • High-speed data networks
  • Industrial control systems
  • Electric power grids
  • Next-generation gaming devices
  • Integrated security systems

Features and Benefits:

  • Exceptional bandwidth capabilities
  • Long lifespan for sustainable use
  • Precision-engineered for critical applications
  • Supports high-density electronic assemblies
  • Low power consumption

Additional Details:

As part of the cutting-edge EXC series, the EXC-24CD900U caters to the most demanding technical specifications, ensuring top-tier performance.
