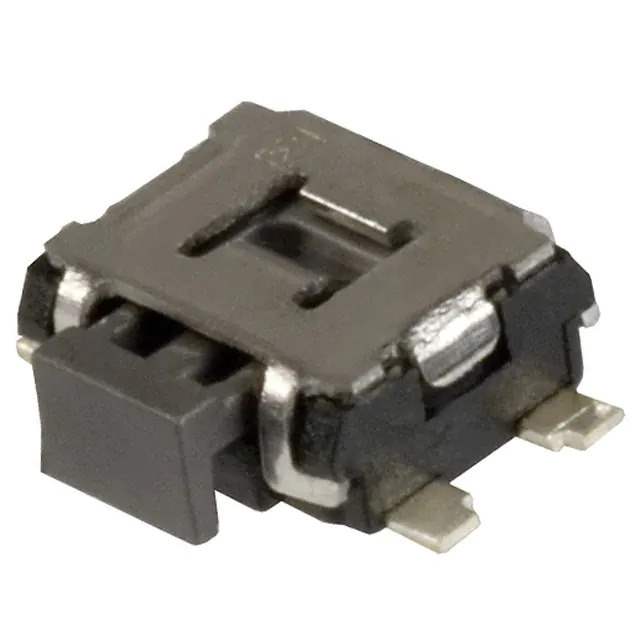

Same model may have multiple batches, images only for reference.

EVQ-P7L01P

Name: EVQ-P7L01P
Brand: Panasonic
SKU: 918778
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EVQ-P7L01P
Manufacturer	Panasonic
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	Panasonic
Series	EVQP7
Package	Tape & Reel
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Rectangular Button
Mounting Type	Surface Mount, Right Angle
Actuator Orientation	Side Actuated
Termination Style	Gull Wing
Outline	4.70mm x 2.90mm
Illumination	Non-Illuminated
Operating Force	160gf
Features	Board Guide
Temperature Range - Operating	-20°C ~ 70°C
Switch Travel	0.20mm
Mechanical Life	100,000 Cycles
Base Product Number	EVQ-P7
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	918778-EVQ-P7L01P
Ultra Librarian 3D Model	Ultra Librarian EVQ-P7L01P CAD Model

Description

The 918778-EVQ-P7L01P is a tactile switch that belongs to the EVQP7 series.

Termination Style: Gull-wing
Actuator Type: Rectangular button actuator type
Actuation Travel: 0.20mm
Contact Rating: 0.05A @ 12VDC
Operating Force: 160gf
Illumination: Non-Illuminated
Temperature Range: -20°C to 70°C
Mounting: Surface mount, right-angle
Package Type: Tape and reel
Standard Package Quantity: 5,000 pieces
Product Status: Active from Panasonic
