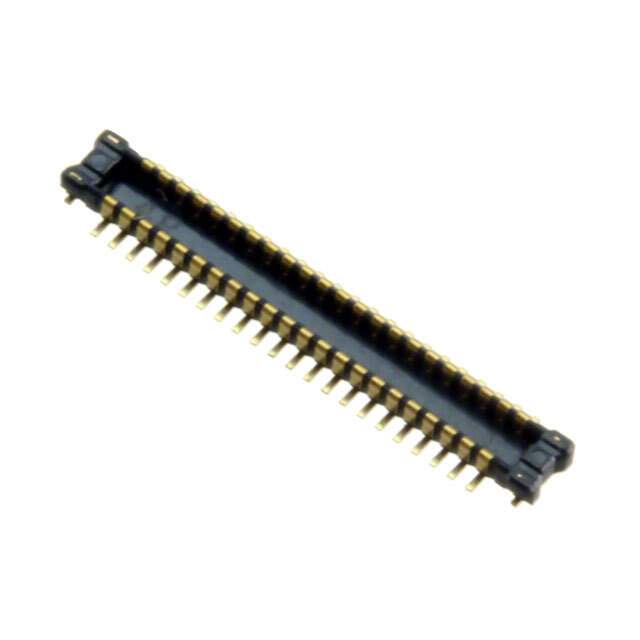

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 44
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1020944-AXE644124A
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian AXE644124A CAD Model

Description

The Panasonic AXE644124A is a 44-position header connector designed for use in various electronic devices.

  • Positions: 44
  • Contact Plating: Gold
  • Pitch: 0.016" (0.40mm)
  • Package: Reel
  • Pieces Per Package: 500
  • Solder Retention: Yes
  • Height Above Board: 0.026" (0.65mm)
  • Suitability: Compact Electronic Devices
  • Availability: Available
  • Popularity: Medium
