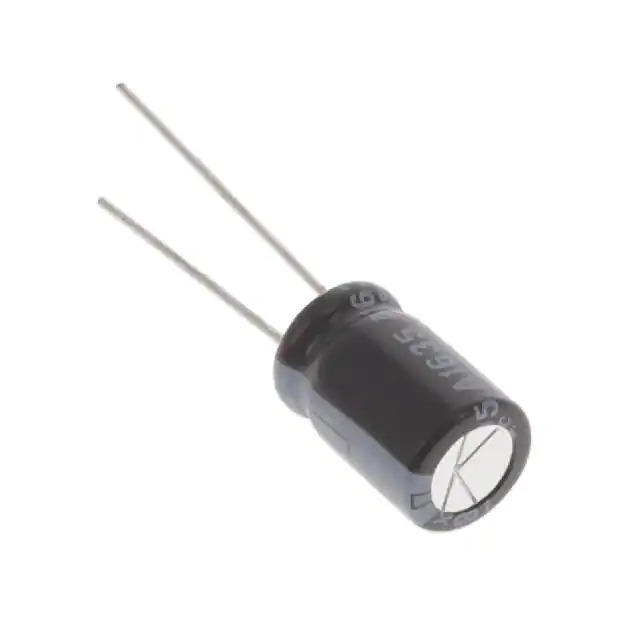

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 480 mA @ 120 Hz
Ripple Current @ High Frequency 576 mA @ 10 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357926-16PX680MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 16PX680MEFC8X11.5 CAD Model

Description

The Rubycon PX series aluminum electrolytic capacitor is a high-quality component suitable for a wide range of applications.

  • Capacitance: 680 μF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Temperature Range: -55°C to 105°C
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Lead Spacing: 3.50mm
  • Size/Dimension: 8.00mm Diameter
  • Height: 13.00mm
  • Lifetime: 1000 hours @ 105°C
  • Ripple Current @ Low Frequency: 480 mA @ 120 Hz
  • Ripple Current @ High Frequency: 576 mA @ 10 kHz
  • Application: General Purpose
