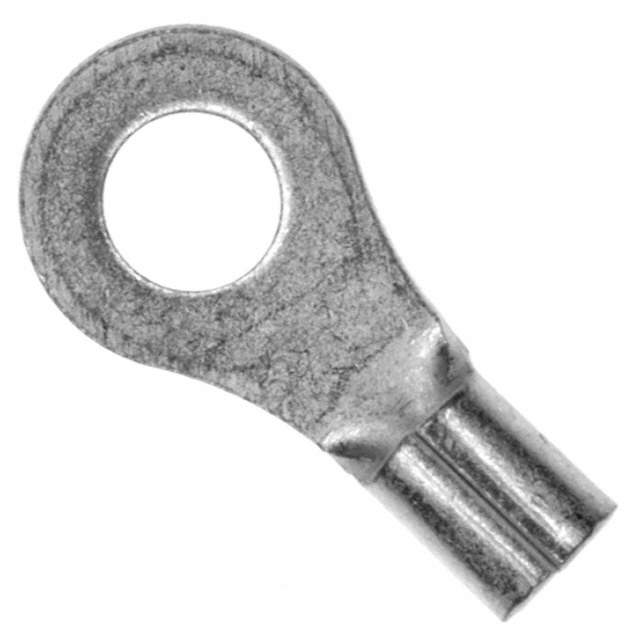

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity
Series Budget
Package Bulk
Product Status Active
Terminal Type Circular
Stud/Tab Size 6 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.281" (7.14mm)
Length - Overall 0.574" (14.58mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Non-Insulated
Features Serrated Termination
Contact Material Copper
Contact Finish Tin
Base Product Number 3126
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 906537-31264
Ultra Librarian 3D Model Ultra Librarian 31264 CAD Model

Description

The Budget series ring connector is a reliable and cost-effective solution for electrical connections manufactured by Unknown Manufacturer.

  • Termination: Serrated termination
  • Termination Method: Crimping
  • Wire Gauges: 16 to 22 AWG
  • Material: Copper
  • Insulation: Non-insulated
  • Stud Size: 6
  • Mounting Type: Free hanging (in-line)
  • Operating Temperature: -30°C to 105°C
