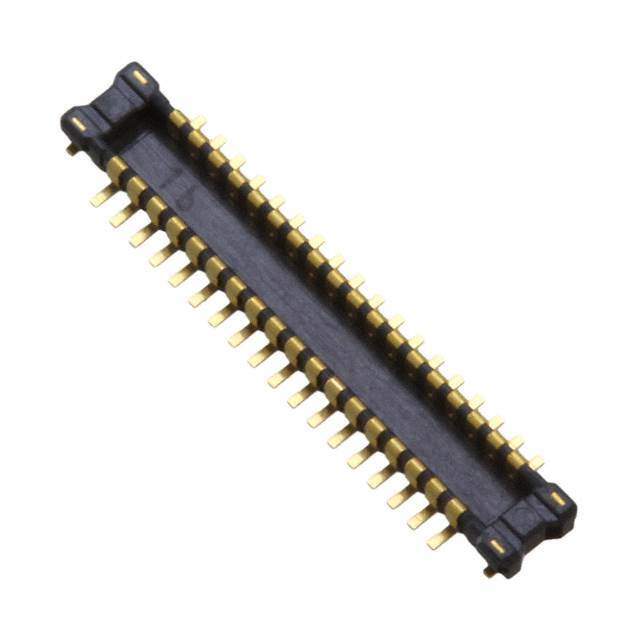

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 36
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1020942-AXE636124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian AXE636124 CAD Model

Description

The Panasonic Electric Works AXE636124 is a header connector with 36 positions and a pitch of 0.016” (0.40mm).

  • Positions: 36
  • Pitch: 0.016” (0.40mm)
  • Features: solder retention and gold contact finish
  • Contacts: Outer shroud contacts
  • Mounting: surface mount technology (SMT)
  • Height Above Board: 0.026” (0.65mm)
  • Mated Stacking Height: 0.8mm
  • Category: connectors, interconnects
  • Status: currently active
  • Packaging: reel packaging with 5k pcs per package.
