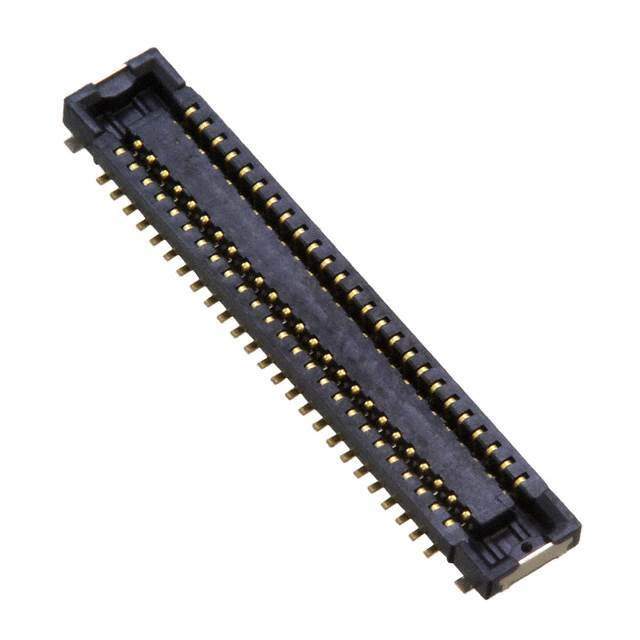

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 50
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Win Source Part Number 1020926-AXE550124
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian AXE550124 CAD Model

Description

The 1020926-AXE550124 from Panasonic Electric Works is a socket center strip contacts connector with 50 positions and a pitch of 0.016" (0.40mm).

  • Positions: 50
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention
  • Rows: 2
  • Contact Finish: Gold
  • Mated Stacking Heights: 0.8mm and 1mm
  • Height Above Board: 0.030" (0.75mm)
  • Mounting: SMD (SMT)
  • Popularity: Medium
  • Packaging: Reel of 1k pcs
