Same model may have multiple batches, images only for reference.

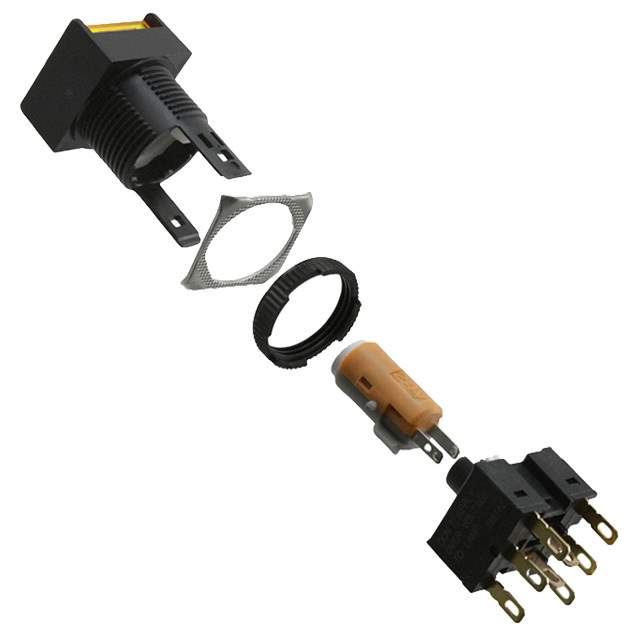

A16LAYA12D2 Real Image
Same model may have multiple batches, images only for reference.

A16LAYA12D2

Part No A16LAYA12D2
Manufacturer Omron
Catalog Pushbutton Switches
Description Switches - 16mm Pushbutton Switches DPDT ALT SQ 12V YEL IP40 Lamp Illum
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Current Rating 15 mA
Current Rating 5 A
Electrical Life 100 kcycles
Illumination Color Yellow
Illumination Type LED
Lead Free Yes
Life (Cycles) 100 kcycles
Maximum Operating Temperature 55 °C
Mechanical Life 200 kcycles
Min Operating Temperature -10 °C
Mount Front, Panel
Orientation Vertical
Packaging Bulk
Ratings IP40
RoHS Compliant
Switch Function On-On
Termination Solder
Throw Configuration DPDT
Voltage Rating (AC) 125 V
Voltage Rating (DC) 30 V
Win Source Part Number 990809-A16LAYA12D2
Categories Pushbutton Switches
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian A16LAYA12D2 CAD Model

Description

The A16LAYA12D2 is an illuminated pushbutton switch from Omron.

  • Supply and Demand Status: Shortage
  • Throw Configuration: DPDT
  • Maximum Current Rating: 5A
  • Mechanical Life: 200k cycles
  • Illumination Color: Yellow
  • IP Rating: IP40
