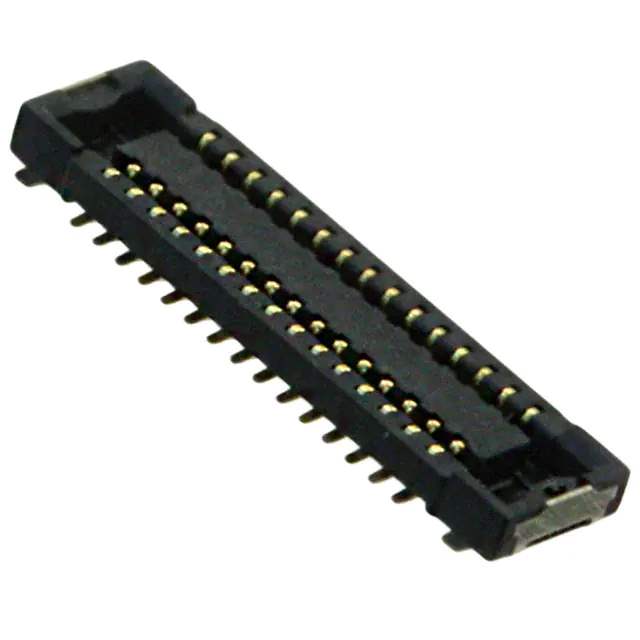

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A4S
Package Bulk
Product Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 30
Pitch 0.157" (4.00mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Standard Package 5,000 pcs
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 958835-AXE530127D
Ultra Librarian 3D Model Ultra Librarian AXE530127D CAD Model

Description

The 958835-AXE530127D is a rectangular connector array designed for edge type mezzanine board-to-board connections and is manufactured by Panasonic

  • Series: A4S series
  • Positions: 30 positions
  • Pitch: 0.157" (4.00mm)
  • Features: solder retention
  • Connector Type: socket connector type with center strip contacts
  • Rows: 2 rows
  • Contact Finish: gold contact finish
  • Package: bulk
  • Standard Package: 5,000 pieces
  • Mated Stacking Heights: 0.8mm and 1mm
  • Height Above Board: 0.030" (0.75mm)
  • Mounting Type: surface mount
  • ECCN: EAR99
  • HTSUS code: 8536.69.4040
  • Product Status: active
