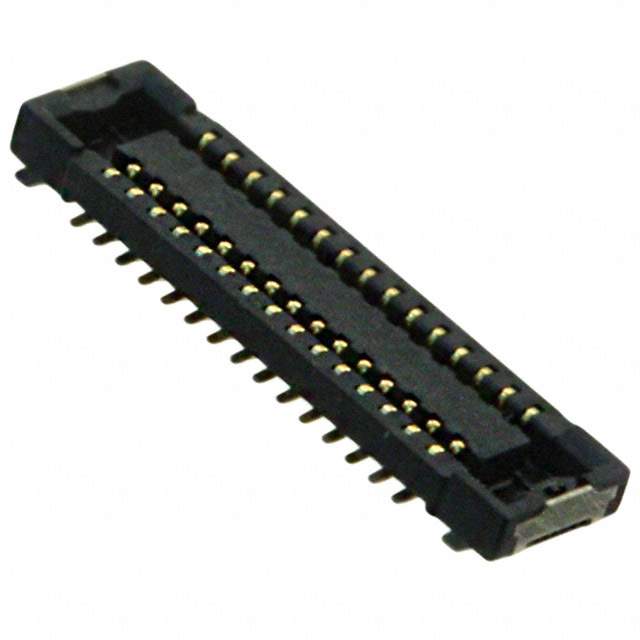

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 30
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.011" (0.30mm)
Win Source Part Number 1020921-AXE530127
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian AXE530127 CAD Model

Description

The AXE530127 is a 30-position center strip socket connector from Panasonic Electric Works. It features a pitch of 0.40mm and has 2 rows of contacts with a gold contact finish.

  • Positions: 30
  • Type: Center Strip Socket
  • Pitch: 0.40mm
  • Rows: 2
  • Contact Finish: Gold
  • Height Above Board: 0.30mm
  • Mounting: SMD (SMT)
  • Packaging: Reel
  • Quantity per Package: 5k pcs
