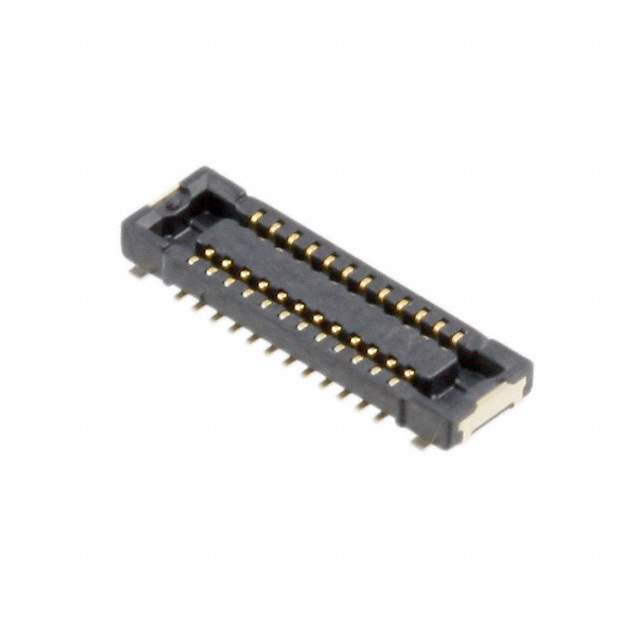

AXE524124 Real Image
Same model may have multiple batches, images only for reference.

AXE524124

Part No AXE524124
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET .4MM 24 POS SMD
Datasheet
AXE524124 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Obsolete(EOL)
Connector Type Socket, Center Strip Contacts
Number of Positions 24
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Win Source Part Number 1020918-AXE524124
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AXE524124 CAD Model

Description

The AXE524124 from Panasonic Electric Works is a socket connector with center strip contacts and 24 positions.

  • Positions: 24
  • Pitch: 0.016" (0.40mm)
  • Features: solder retention
  • Rows: two
  • Contact Finish: gold
  • Mated Stacking Heights: 0.8mm and 1mm
  • Height Above Board: 0.030" (0.75mm)
  • Mounting Type: surface mountable
  • Category: connectors and interconnects
  • Status: obsolete (EOL)
  • Popularity: medium
  • Supply and Demand Status: balanced
