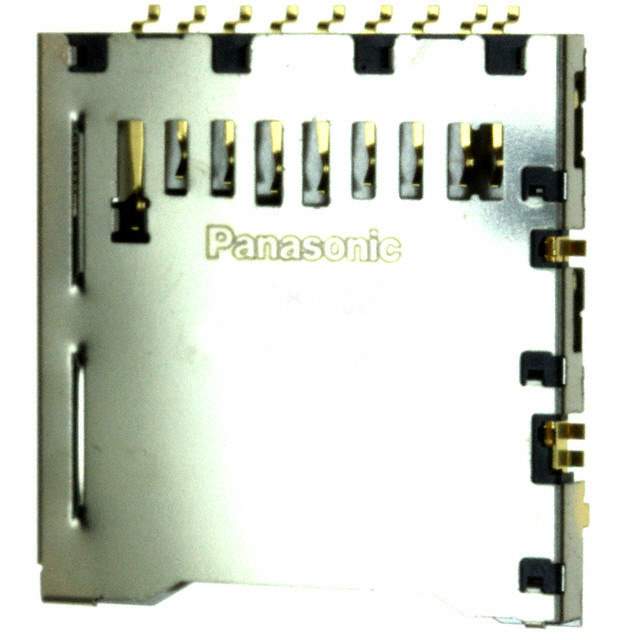

AXA2R63061P Real Image
Same model may have multiple batches, images only for reference.

AXA2R63061P

Part No AXA2R63061P
Manufacturer Panasonic
Catalog Memory Connectors - Accessories
Description CONN SD CARD PUSH-PUSH R/A SMD  /  12 (9 + 3) Position Card Connector Secure Digital - SD Surface Mount, Right Angle Gold
Datasheet
AXA2R63061P Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors - PC Card Sockets
Mfr Panasonic Electric Works
Series AXA2R
Package Tape & Reel (TR)
Product Status Obsolete
Card Type Secure Digital - SD
Number of Positions 12 (9 + 3)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Mounting Type Surface Mount, Right Angle
Features Board Guide, Switch
Height Above Board 0.134" (3.40mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness Flash
Base Product Number AXA2R63061
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 350
Win Source Part Number 1004608-AXA2R63061P
Ultra Librarian 3D Model Ultra Librarian AXA2R63061P CAD Model

Description

The Panasonic Electric Works AXA2R63061P is a connector and ejector for secure digital - SD cards.

  • Positions: 12 positions
  • Features: board guide and switch
  • Connector Type: gold plated
  • Contact Finish Thickness: flash contact finish thickness
  • Mounting: surface mountable
  • Mounting Type: right-angle mounting type
  • Mounting Feature: standard top mounting feature
  • Package: tape & reel (TR)
  • Standard Package: 350
  • Height Above Board: 0.134" (3.40mm)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
