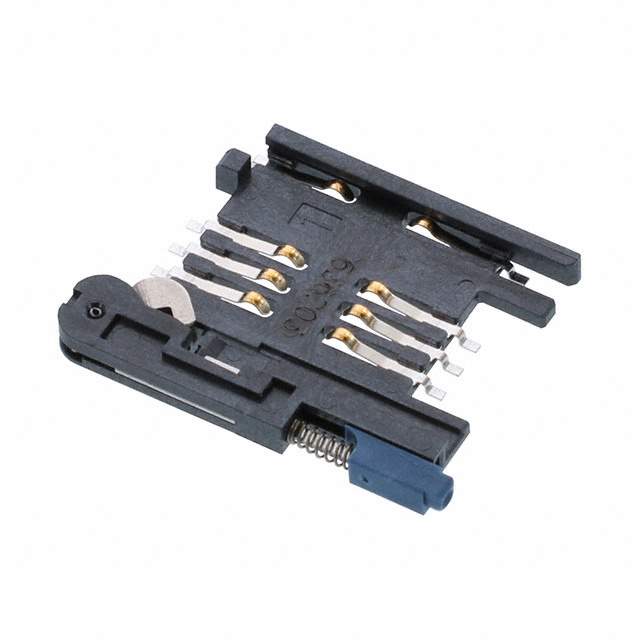

91228-3007 Real Image1 91228-3007 Real Image2
Same model may have multiple batches, images only for reference.
91228-3007 Real Image1 91228-3007 Real Image2
91228-3007 Real Image1 91228-3007 Real Image2
Same model may have multiple batches, images only for reference.

91228-3007

Part No 91228-3007
Manufacturer Molex, LLC
Catalog Memory Connectors - Accessories
Description 2.54mm Pitch ChipSIM Connector with Ejector, 6 Circuits, with Pegs, Blue Button
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Socket
Contact Material Bronze
Contact Plating Gold
Country of Origin IE
Current Rating 500 mA
Depth 32.22 mm
Gender Receptacle
Halogen Free Low Halogen
Housing Material Stainless Steel
Length 25 mm
Max Operating Temperature 85 °C
Min Operating Temperature -30 °C
Mount Surface Mount
Number of Circuits 6
Number of Contacts 6
Number of Rows 2
Orientation Straight
Pitch 2.54 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination SMD/SMT
Width 3 mm
Win Source Part Number 1136877-91228-3007
Categories Memory Connectors - Accessories
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 91228-3007 CAD Model

Description

The 1136877-91228-3007 is a 2.54 mm pitch, 6-contact receptacle connector with a straight orientation and surface mount termination, manufactured by Molex.

  • Pitch: 2.54 mm
  • Number of Contacts: 6
  • Orientation: Straight
  • Termination: Surface Mount
  • Current Rating: 500 mA
  • Contact Material: Bronze
  • Housing Material: Stainless Steel
  • Contact Plating: Gold
  • Width: 3 mm
  • Length: 25 mm
  • Depth: 32.22 mm
  • RoHS Compliant: Yes
  • Low Halogen: Yes
