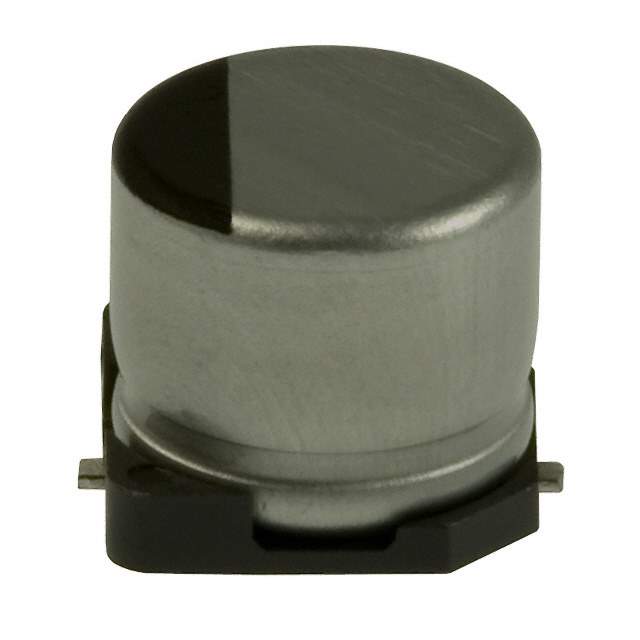

EEE-1EA220SP Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series S
Package Tape & Reel
Product Status Not For New Designs
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 55 mA @ 120 Hz
Ripple Current @ High Frequency 93.5 mA @ 10 kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-1EA
Other Names PCE3899TR,Q6498582I,EEE1EA220SP,PCE3899DKR,PCE3899CT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307304-EEE-1EA220SP
Ultra Librarian 3D Model Ultra Librarian EEE-1EA220SP CAD Model

Description

The EEE-1EA220SP is an aluminum electrolytic capacitor manufactured by Panasonic Electronic Components.

  • Package: Radial, can - SMD
  • Capacitance: 22 μF
  • Tolerance: ±20%
  • Voltage Rating: 25V
  • Suitable for: Automotive electronics
  • Lifetime: 2000 hours @ 85°C
