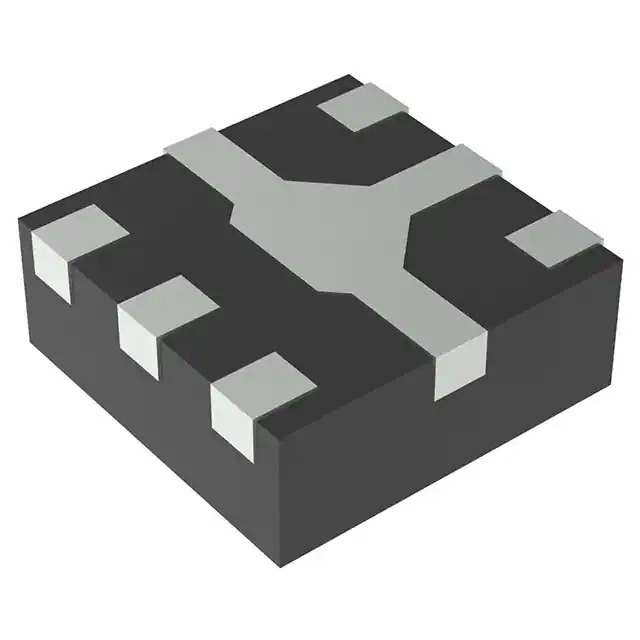

NJG1815K75-TE1 Nisshinbo Micro Devices Inc.
Same model may have multiple batches, images only for reference.

NJG1815K75-TE1

Part No NJG1815K75-TE1
Manufacturer Nisshinbo Micro Devices Inc.
Catalog RF Switches
Description IC RF SWITCH SPDT 6GHZ 6DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Switches
Mfr Nisshinbo Micro Devices Inc.
Series -
Package Tape & Reel
Product Status Active
RF Type 802.11a/b/g/n/ac/ax, WLAN
Topology -
Circuit SPDT
Frequency Range 6GHz
Isolation 25dB
Insertion Loss 0.45dB
Test Frequency 3.8GHz, 6GHz
P1dB 31dBm
IIP3 -
Features -
Impedance 50Ohm
Voltage - Supply 2.5V ~ 5V
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case 6-XFDFN Exposed Pad
Supplier Device Package 6-DFN (1x1)
Base Product Number NJG1815
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1370812-NJG1815K75-TE1
Ultra Librarian 3D Model Ultra Librarian NJG1815K75-TE1 CAD Model

Description

The Nisshinbo Micro Devices Inc. NJG1815K75-TE1 RF Switch is a high-performance switch designed for RF and wireless applications.

  • Category: RF and Wireless - RF Switches
  • Temperature Range: -40°C to 105°C
  • RF Standards: 802.11a/b/g/n/ac/ax, WLAN
  • Voltage Supply: 2.5V to 5V
  • Frequency Range: 6GHz
  • Circuit Topology: SPDT
  • Isolation: 25dB
  • Insertion Loss: 0.45dB
