Same model may have multiple batches, images only for reference.

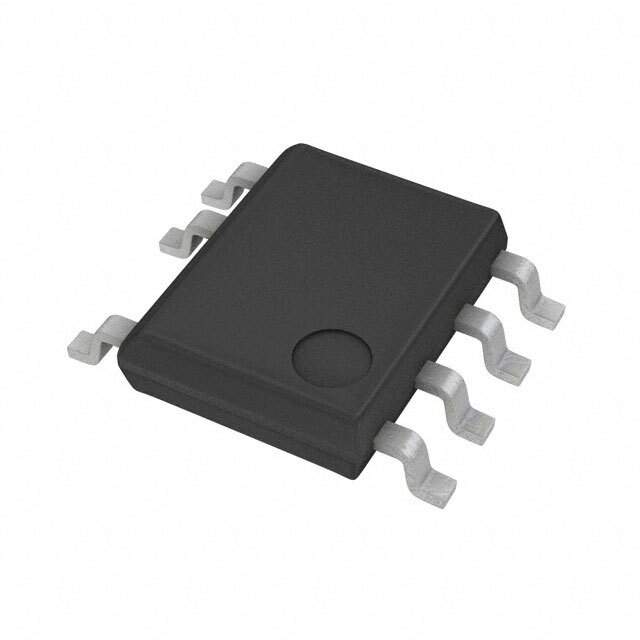

AQH0223A Real Image
Same model may have multiple batches, images only for reference.

AQH0223A

Part No AQH0223A
Manufacturer Panasonic
Catalog Solid State Relays
Description RELAY SSR NON-ZC 0.3A 600V 8 SMD / Solid State Relay 50mA 1.3V DC-IN 0.3A 600V AC-OUT 7-Pin DIP SMD Tube
Datasheet
AQH0223A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series AQ-H
Packaging Tube
Circuit SPST-NO (1 Form A)
Output Type AC
Load Current 300mA
Voltage - Input 1.21VDC
Voltage - Load 0 ~ 600 V
Mounting SMD
Termination Style Gull Wing
Package 8-SMD (0.300", 7.62mm) 7 Leads
Manufacturer Package 8-SMD
Relay Type Relay
Win Source Part Number 768724-AQH0223A
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name AQH0223
Introduction Date May 01, 2006
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian AQH0223A CAD Model

Description

The AQH0223A is a solid-state relay from Panasonic Electric Works that is designed for high-speed switching of AC loads.

  • Circuit Configuration: SPST-NO (1 Form A)
  • Load Current: 300mA
  • Voltage Range: 0~600V
  • Series: AQ-H
  • Status: Limited Supply and Demand
