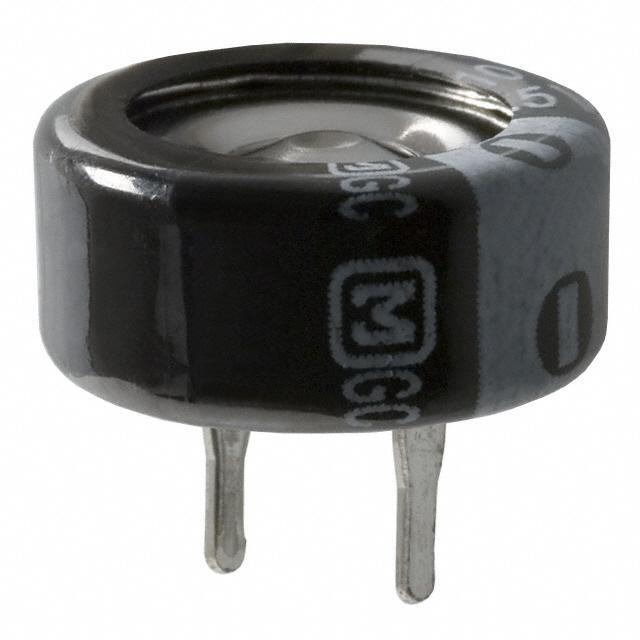

EECF5R5U224 Panasonic
Same model may have multiple batches, images only for reference.

EECF5R5U224

Part No EECF5R5U224
Manufacturer Panasonic
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP .22F 5.5V T/H
Datasheet
EECF5R5U224 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Tray
Status Active
Capacitance 220mF
Tolerance -20%, +80%
Voltage Rating 5.5V
ESR 75 Ohm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination Through Hole
Mounting Through Hole
Lead Spacing 0.197" (5.00mm)
Height - Seated (Max) 0.295" (7.50mm)
Temperature Range - Operating -25°C to 70°C
Win Source Part Number 090535-EECF5R5U224
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name NF
Introduction Date December 01, 1999
ECCN EAR99
Country of Origin Japan
Halogen Free Unknown
Estimated EOL Date 2019
Ultra Librarian 3D Model Ultra Librarian EECF5R5U224 CAD Model

Description

EECF5R5U224 Super Capacitor

The EECF5R5U224 is a high-performance super capacitor designed for energy storage solutions. Its compact design and impressive capacitance make it an ideal choice for various applications. This component is widely used in projects that require rapid charge and discharge capabilities and exceptional durability.

  • Uninterruptible Power Supplies (UPS)
  • Memory Backup Systems
  • Energy Harvesting Devices
  • Power Management Systems

Features and Benefits:

  • Rated Voltage: 5.5V
  • Capacitance: 0.22F
  • Low ESR (Equivalent Series Resistance) for efficient energy use
  • Extended service life with stable performance

Whether you're designing a device that requires a robust backup power source or creating an innovative energy management system, the EECF5R5U224 offers reliable performance to meet your needs.
