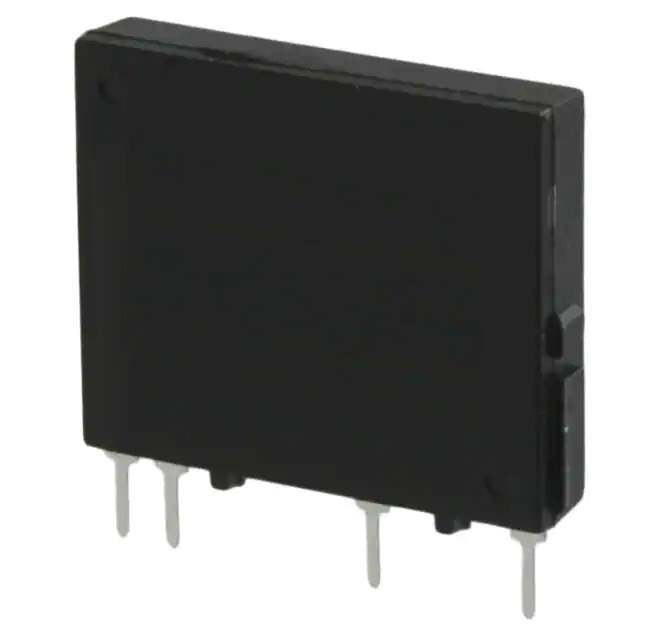

AQG12224 Real Image
Same model may have multiple batches, images only for reference.

AQG12224

Part No AQG12224
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 1A 75-264V / Solid State SPST-NO (1 Form A) 4-SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series AQ-G
Package Bulk
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC
Voltage - Input 19.2 ~ 28.8VDC
Voltage - Load 75 V ~ 264 V
Load Current 1 A
Termination Style PC Pin
Package / Case 4-SIP
Supplier Device Package 4-SIP
Base Product Number AQG122
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 564321-AQG12224
Ultra Librarian 3D Model Ultra Librarian AQG12224 CAD Model

Description

The AQ-G AQG12224 is a solid-state relay manufactured by Panasonic.

  • Termination Style: PC Pin
  • Mounting: Through-Hole
  • Package: 4-SIP
  • Standard Package Quantity: 20 pcs
  • Input Voltage: 19.2 ~ 28.8VDC
  • Output Type: AC
  • Circuit Configuration: SPST-NO (1 Form A)
  • Load Current: 1 A
  • Load Voltage Range: 75 V to 264 V
