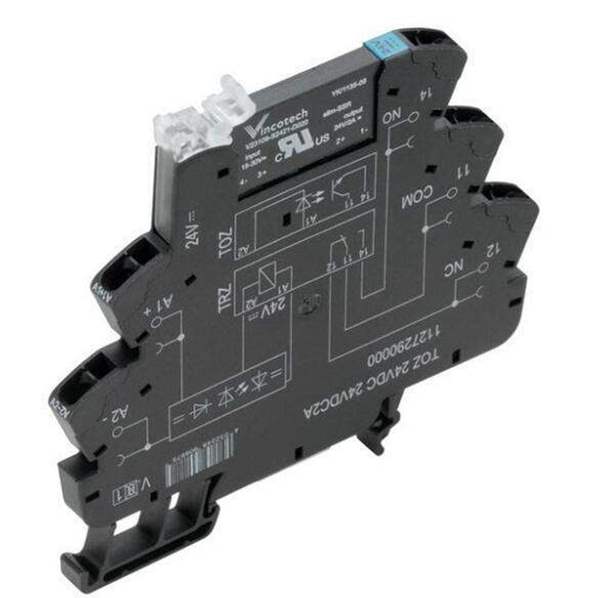

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Relays Solid State Relays
Series TERMSERIES
Package Bulk
Product Status Active
Mounting Type DIN Rail
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 24VDC
Voltage - Load 0 V ~ 48 V
Win Source Part Number WS1204623-1126940000
Ultra Librarian 3D Model Ultra Librarian 1126940000 CAD Model

Description

TERMSERIES complete solid-state relay modules 3 to 48 V DC 0.1 A output versions consisting of a solid-state relay and a base with AC/DC/UC input; available in different designs: • With screw connection • In 6.4 mm width • Optionally with multiple-voltage input: 24 to 230 V UC • With various protective circuits in the input (free-wheel diode, RC element) • Illuminated ejection lever<br />
