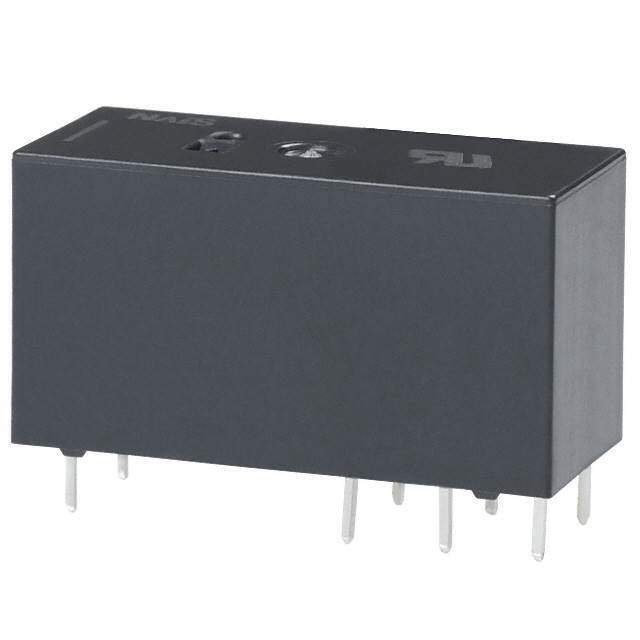

ALZ51F12 Real Image
Same model may have multiple batches, images only for reference.

ALZ51F12

Part No ALZ51F12
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series ALZ
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 440VAC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 105°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 360 Ohms
Base Product Number ALZ51F
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Standard Package 20
Win Source Part Number 1023738-ALZ51F12
Ultra Librarian 3D Model Ultra Librarian ALZ51F12 CAD Model

Description

The ALZ51F12 is a power relay with a SPST-NO (1 Form A) contact form and a switching voltage of 440VAC - Max.

  • Switching Voltage: 440VAC - Max
  • Coil Voltage: 12VDC
  • Coil Resistance: 360 Ohms
  • Temperature Range: -40°C to 105°C
  • Protection: Sealed Flux
  • Contact Rating: 16 A
  • Package: 20 standard packages
  • Release Time: 5 ms
  • Operate Time: 15 ms
  • Coil Type: Non-Latching
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Mounting Type: Through-Hole
  • Termination Style: PC Pin
  • Manufacturer: Panasonic Electric Works
