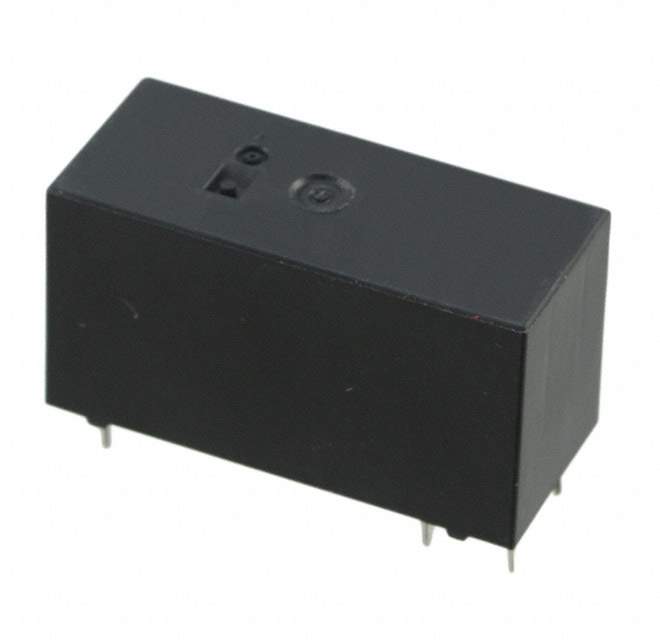

ALZ51B24 Real Image
Same model may have multiple batches, images only for reference.

ALZ51B24

Part No ALZ51B24
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series ALZ
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 440VAC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class B
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 1.44 kOhms
Base Product Number ALZ51B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-2944
Standard Package 20
Win Source Part Number 1001309-ALZ51B24
Ultra Librarian 3D Model Ultra Librarian ALZ51B24 CAD Model

Description

The Panasonic Electric Works ALZ51B is a power relay with a SPST-NO (1 Form A) contact form.

  • Contact Rating Current: 16A
  • Switching Voltage: 440VAC - max
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.44kOhms
  • Release Time: 5ms
  • Operate Time: 15ms
  • Package: Tube
  • Category: Power relays, over 2 amps
