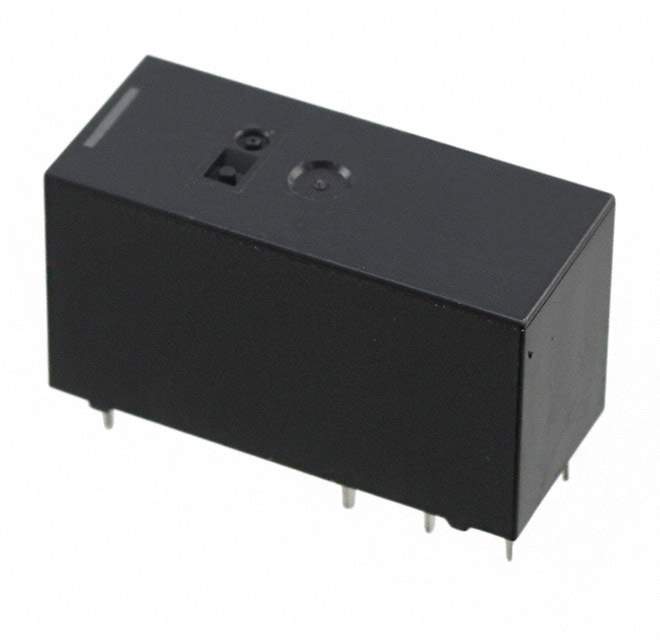

ALZ11B05 Real Image
Same model may have multiple batches, images only for reference.

ALZ11B05

Part No ALZ11B05
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 80mA
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16A
Switching Voltage 440VAC - Max
Turn On Voltage (Max) 3.5 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 15ms
Release Time 5ms
Features Insulation - Class B, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 63 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 009651-ALZ11B05
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian ALZ11B05 CAD Model

Description

Product Description

The ALZ11B05 microprocessor provides efficient processing power for various electronic projects, suitable for applications demanding robust and consistent performance.

Applications

  • Smart Appliances
  • IoT Devices
  • Wearable Technology
  • Automation Controls

Features and Benefits

  • Cost-Effective: Engineered for affordability without sacrificing quality.
  • Stable Performance: Delivers reliable operations across multiple environments.
  • Energy Saving: Minimizes power usage, ideal for battery-powered devices.
  • Versatility: Flexible for use in diverse technological setups.

The ALZ11B05 is designed to meet the growing demands of modern electronics, ensuring impactful contributions to technological advancements.
