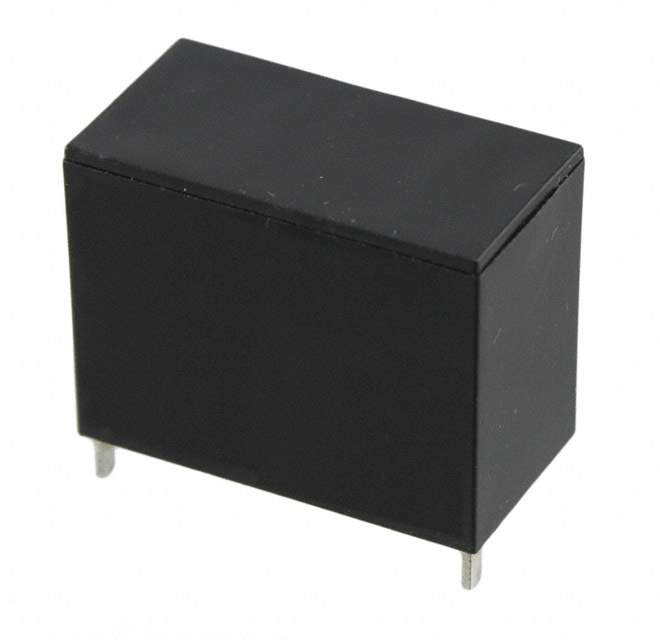

The ALFG2PF12 is a power relay manufactured by Panasonic. It is designed for switching higher current loads in various applications.

Applications

• Industrial Equipment
• HVAC Systems
• Power Supplies
• Motor Control
• Lighting Control

Features

• Contact Rating: 12A at 250VAC
• Coil Voltage: 12VDC
• SPDT Contact Configuration
• High Dielectric Strength
• Compact Size

Benefits

• Reliable Switching of High Current Loads
• Long Life Expectancy
• Easy to Integrate into Circuits
• Provides Electrical Isolation
• Suitable for Industrial Environments

Technical Specifications

The ALFG2PF12 power relay has a contact rating of 12 Amps at 250VAC, making it suitable for switching AC power loads. The coil operates at 12VDC. It has a SPDT (Single Pole Double Throw) contact configuration, offering flexibility in circuit design. The relay features high dielectric strength, providing electrical isolation between the coil and contacts. The compact size allows for high-density PCB layouts. The relay is designed to operate within a specified temperature range. Contact material is chosen for reliable high-current switching. The relay is often used in applications where electrical isolation and reliable switching of power loads are required.

It provides a reliable solution for switching power to motors, lighting, and other industrial equipment. The relay offers electrical isolation between the control circuit and the load, preventing interference and protecting sensitive components. The compact size allows for space-saving designs. The long life expectancy ensures reliable operation over extended periods.
