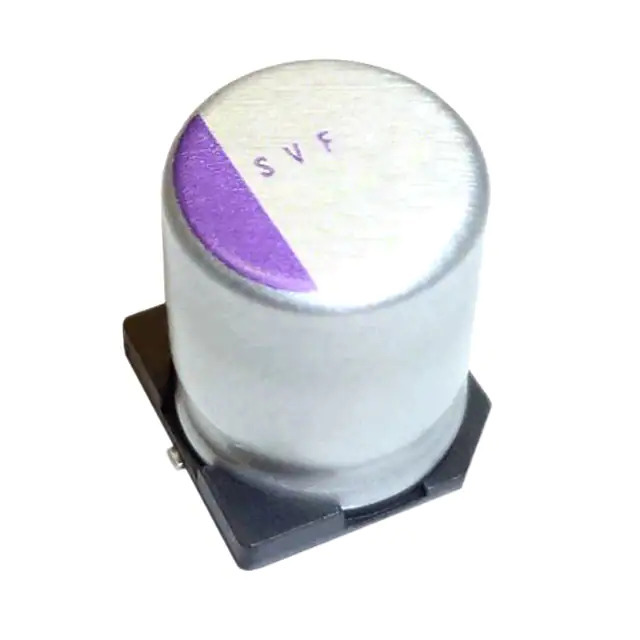

25SVF330M Panasonic
Same model may have multiple batches, images only for reference.

25SVF330M

Part No 25SVF330M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 330UF 20% 25V SMD / 330 µF 25 V Aluminum - Polymer Capacitors Radial, Can - SMD 14mOhm 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVF
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 14mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 79 mA @ 120 Hz
Ripple Current @ High Frequency 1.58 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.500" (12.70mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 25SVF
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359504-25SVF330M
Ultra Librarian 3D Model Ultra Librarian 25SVF330M CAD Model

Description

The 25SVF330M is a polymer capacitor manufactured by Panasonic Electronic Components.

  • Category: Capacitors - Aluminum - Polymer Capacitors
  • Status: Active
  • Capacitance: 330µF
  • Tolerance: ±20%
  • Voltage Rating: 25V
  • ESR: 14mOhm
  • Lifetime: 1000 hours @ 125°C
  • Ripple Current (Low Frequency): 79mA @ 120 Hz
  • Ripple Current (High Frequency): 1.58A @ 100 kHz
  • Size: 0.394" diameter (10.00mm)
  • Height Seated: 0.500" (12.70mm)
  • Mounting: Surface Mountable
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • REACH: Unaffected
  • ECCN: EAR99
