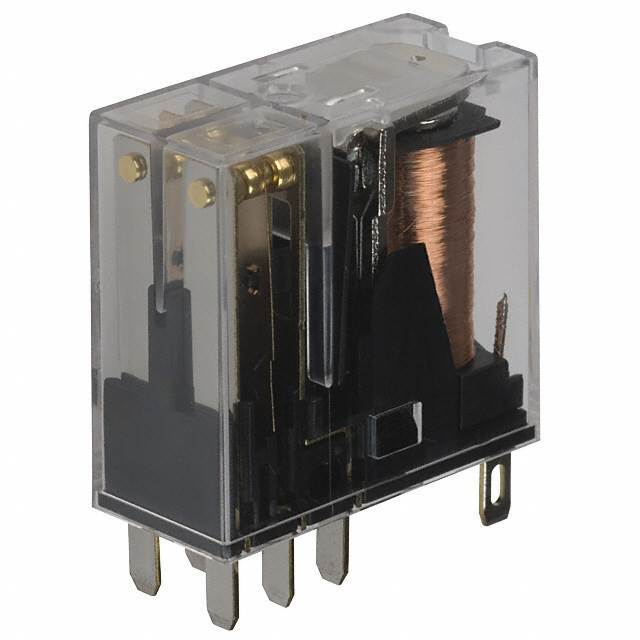

AHN22024N Panasonic
Same model may have multiple batches, images only for reference.

AHN22024N

Part No AHN22024N
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series AHN
Package Box
Product Status Obsolete
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 22 mA
Coil Type Non Latching
Termination Style Plug In
Must Operate Voltage 16.8 VDC
Must Release Voltage 3.6 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 1.09 kOhms
Base Product Number AHN220
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 560330-AHN22024N
Ultra Librarian 3D Model Ultra Librarian AHN22024N CAD Model

Description

The AHN22024N is a power relay from Panasonic's AHN series.

  • Type: DPDT (2 Form C)
  • Contact Rating: 5A
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.09 kOhms
  • Operate Time: 15ms
  • Release Time: 5ms
  • Contact Material: Silver Nickel (AgNi)
  • Socketable: Yes
  • Temperature Range: -40°C to 70°C
  • Package: Box
  • Standard Package: 500 pcs
  • Status: Obsolete
  • ECCN: EAR99
